Description

Audi Q3 / SQ3 OEM Integrated Backup Camera System

The FC-AUDI-EXT systems package is a high definition rear view camera and video integration module for your vehicle with 3G MMI Navigation. The video interface connects through a simple plug and play OEM Integrated LVDS connection to the factory screen. The FC-AUDI-EXT Interface Module has a dedicated rear view camera input that will automatically trigger when in reverse and revert back when in park or drive all using your OEM screen to display the backup camera feed. Along with a dedicated rear camera input, the FC-AUDI-EXT system also has 3 additional AV inputs should you decide to add a front camera (manual trigger), DVD Player, TV Tuner or any external video source with AV inputs. This system is an OEM integration package that maintains your factory set up while upgrading your vehicle with full Multimedia Video Integration. Once installed, the system is ready for use without any dealer activation or coding required.

Audi Q3 / SQ 3 Systems Compatibility



AUDI Model	Model Year	Multimedia System
Q3 / SQ3 / RS Q3	2011-2015	with 3G MMI (EXT)

Audi Q3 / SQ 3 Interface Module Features



Input

• • Plug & Play installation by LVDS cable
  • 1 x Dedicated Rear-View Camera input
  • 3 x A/V Inputs
  • 1 x LCD input



Output

• • 3 x Audio output
  • 1 x LCD output
  • Factory button function & provided remote control



Power

• • Input power : 8V DC – 24V DC
  • Consumption : 12W, Max



Board dimension

• • 130mm x 105mm x 22mm

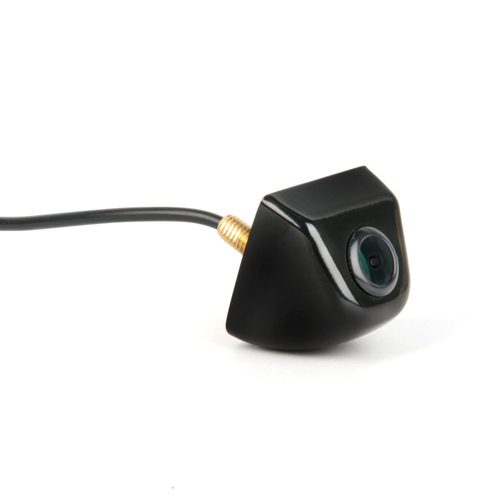

Audi Q3 / SQ 3 Flush Mount Backup Camera Features



Features

• • OEM Style Backup Camera
  • SONY CCD HD
  • Vivid Color High Resolution
  • 170° Wide Angle View
  • Parking Guide Lines Option (ON / OFF)
  • Waterproof Ip68
  • Shockproof
  • Simple Installation



Specifications

Specification Terms	Product Values
Image Sensor	CCD HD Sony
Power Supply	DC12V±1V
Power	<1W
Effective Pixels	728*582
Resolution (TV Line)	520
Electronic Shutter	1/60, 1/10,000 sec
Lens Angle	170°
Min. Illumination	0.01lux
IP Rating	Ip68
S/N Ratio	≥48dB
Video Output	1.0vp-p.75Ω
Current Consumption	30-60mA
Operating Temp. (F)	-20~+100
Storage Temp. (F)	-40~+120
TV System	NTSC/PAL
White Balance	Auto





Features

• • Tailgate Handle Camera Fitment
  • Trunk Latch Soft Pad Trigger
  • Sony CCD HD Lens Built In
  • Vivid Color – High Resolution 720p
  • 170° Wide Angle Lens
  • Parking Guideline Switcher (ON / OFF)
  • Shockproof
  • Simple Installation
  • No Drilling or Cutting Required
  • Waterproof Ip68

*For compatibility, please make sure your current tailgate latch measures roughly 4 1/2 inches across*





Specifications

Audi Q3 / SQ 3 OEM Integrated Backup Camera System Package Content

• • Audi Video Interface Module
  • Remote Control
  • IR Cable
  • Mode Cable (Toggle Switch)
  • Power Cable with Protective Filter
  • LCD Out Cable
  • AV Harness
  • Audi Tailgate Handle Camera (Sony CCD HD)
  • Power/Ground harness cable
  • RCA Extension Cable (Power Leads Built In)
  • Installation Instructions







Please note package content may differ depending on vehicle year and camera option.
