RANGE ROVER FREELANDER OEM Integrated Backup Camera System

$494.00

This OEM Integrated RANGE ROVER Rear-View Backup Camera kit fits all 2007-2012 Freelander models with OEM external navigation box. The comprehensive Multimedia Video Interface integrates through simple plug-in connection to enable the viewing of external video sources such as Backup Camera (provided in kit), DVD player, TV tuner, Video Game Console, Smartphone, and optional Navigation on your factory built-in car monitor.

Extended Warranty *

Add up to 3 total years of warranty.

Category: SKU: rrgvif-unidf-freelander

Description

RANGE ROVER FREELANDER OEM Integrated Backup Camera

The RRGVIF-UNIDF systems package is a high definition rear view camera and video integration module for your RANGE ROVER vehicle with OEM Integrated external navigation box. The OEM Integrated backup camera mounts above the license plate area. Once connected to the video interface module, the image appears automatically in high definition when the vehicle is placed into reverse. The RRGVIF Interface Module has a dedicated rear view camera input, aftermarket RGB Navigation input, and 3 additional video inputs for external sources such as a DVD Player, Frontal Vision Camera, or iPod/iPhone. This system is a simple OEM integration package that maintains your factory set up while upgrading your vehicle with backup camera and full Multimedia Audio/Video integration.

RANGE ROVER FREELANDER Systems COMPATIBILITY

  RANGE ROVER Model   Model Year   Multimedia System
Freelander 2007-2012  w/ Nav



RANGE ROVER FREELANDER Interface Module FEATURES



Input

    • Installation by Plug & Play LVDS Cable
    • DVD & NAVI control by through optional touch screen panel
    • 1 x dedicated Rear-View Camera input
    • 3 x A/V Inputs
    • 1 x LCD input



Output

    • 2 x CVBS output (video out for headrest monitor installation)
    • 4 x Audio select output
    • 1 x Cayenne output
    • Remote control & Toggle switch provided



Power

    • Input power : 8V DC – 24V DC
    • Consumption : 5W, Max



Board dimension

    • 130mm x 105mm x 22mm





RANGE ROVER FREELANDER Backup Camera FEATURES



Features



    • OEM Style Backup Camera fitment
    • Vivid Color High Resolution
    • 170° Wide Angle View

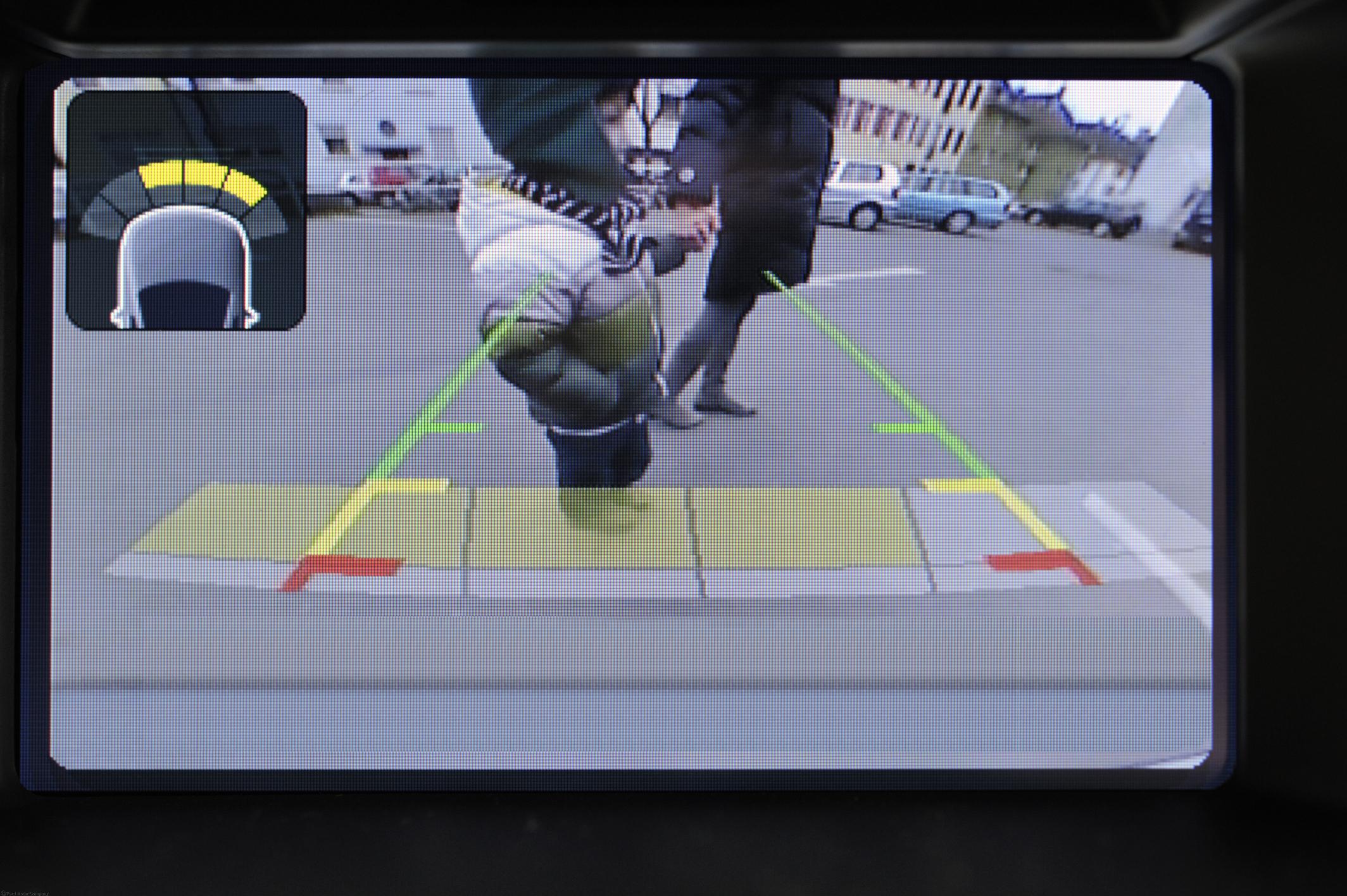

    • Parking Guide Lines (can be turned on/off)
    • Waterproof Ip68
    • Shockproof
    • Simple Installation



Specifications

155° Off Axis View Cone
IP69K Waterproof Certified (Can Handle Direct High Pressure Spray and Not Leak)
UV Protected and Waterproof Cabling
0.1 LUX Rating for Optimal Low-light Performance
32° to 160° Temp Performance Rating
Quick Connect/Disconnect
Optional Parking Lines ON/OFF
Optional Mirror Image ON/OFF
Water Deterrent Gasket (Provided for Sealed Mount to Vehicle Surface)









RANGE ROVER FREELANDER OEM Integrated Backup Camera System PACKAGE CONTENT



    • RANGE ROVER GVIF Car Video Interface Main Board
    • Remote control unit with IR cable or OSD Keypad
    • Cable set
    • Power Cable with protective filter
    • LCD Out cable
    • AV bundle cable
    • NAVI (RGB) cable
    • Mode switch cable
    • LCD cable
    • RANGE ROVER Universal Mount Backup Camera
    • Power/Ground harness cable
    • 30FT Video cable
    • Installation Instructions
    • Owners Manual/Warranty Card



Additional information

Weight 3.0000 lbs
