A3 OEM Integrated Backup Camera

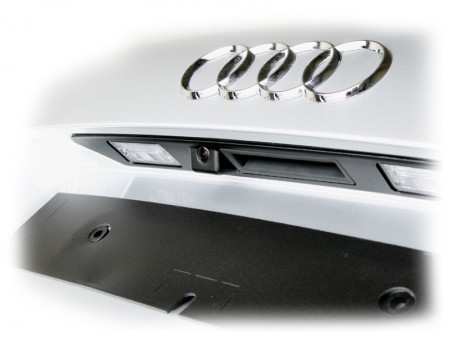

The FC-A3 systems package is a high definition backup camera and video integration module for your Audi A3 with or without nagivation. The Flush Mount Camera mounts upwards onto the license plate lip and once connected to the interface module, the backup camera image will automatically display on your OEM screen when in reverse and revert back when in park or drive. Along with a dedicated rear camera input, the FC-A3 system also has 3 additional AV inputs should you decide to add a front camera (manual trigger), DVD Player, TV Tuner or any external video source with AV inputs. This system is an OEM integration package that maintains your factory set up while upgrading your vehicle with full Multimedia Video Integration. The FC-A3 will also enable Dynamic Parking Guidelines that will move with your steering wheel to better assist you in parallel parking. Once installed, the system is ready for use without any dealer activation or coding required.







A3 Systems Compatibility

Model	Model Year	Multimedia System
A3 / S3 / RS3	2013-2016	LCD





A3 Interface Module FEATURES



Input

• • Plug & Play installation by LVDS cable
  • 1 x Dedicated Rear-View Camera input
  • 3 x A/V Inputs
  • 1 x LCD input



Output

• • 3 x Audio output
  • 1 x LCD output
  • Factory button function & provided remote control

Power

• • Input power : 8V DC – 24V DC
  • Consumption : 12W, Max



Board dimension

• • 130mm x 105mm x 22mm











A3 Flush Mount Backup Camera Features



Features

• • OEM Style Backup Camera
  • Flush Mount Camera
  • Vivid Color High Resolution
  • 170° Wide Angle View
  • Parking Guide Lines Option (ON / OFF)
  • Waterproof Ip68
  • Shockproof
  • Simple Installation



Specifications



155° Off Axis View Cone

IP69K Waterproof Certified (Can Handle Direct High Pressure Spray and Not Leak)

UV Protected and Waterproof Cabling

0.1 LUX Rating for Optimal Low-light Performance

32° to 160° Temp Performance Rating

Quick Connect/Disconnect

Optional Parking Lines ON/OFF

Optional Mirror Image ON/OFF

Water Deterrent Gasket (Provided for Sealed Mount to Vehicle Surface)

A3 OEM Integrated Backup Camera System Package Content

• • Audi Video Interface Module
  • Remote Control
  • IR Cable
  • Mode Cable (Toggle Switch)
  • Power Cable with Protective Filter
  • LCD Out Cable
  • AV Harness
  • OEM Style Flush Mount Backup Camera
  • 30 Ft. RCA Extension Cable (Extension Power Leads)
  • Camera Power/Ground Harness
  • Camera Washer & Screw Set
  • Waterproof Adhesive Tape
  • Installation Instructions









Please note package content may differ depending on vehicle year and camera option.
