Description
BMW 5-Series / M5 OEM Integrated Backup Camera System
The FC-CCC/CIC/NBT/EVO systems package is a high definition rear view camera and video integration module for your vehicle with or without Navigation. The video interface connects through a simple plug and play OEM Integrated LVDS connection to the factory screen. The FC-CCC/CIC/NBT/EVO Interface Module has a dedicated rear view camera input that will automatically trigger when in reverse and revert back when in park or drive all using your OEM screen to display the backup camera feed. Along with a dedicated rear camera input, the FC-CCC/CIC/NBT/EVO system also has 3 additional AV inputs should you decide to add a front camera (manual trigger or automatic trigger), DVD Player, TV Tuner or any external video source with AV inputs. This system is an OEM integration package that maintains your factory set up while upgrading your vehicle with full Multimedia Video Integration. Once installed, the system is ready for use without any dealer activation or coding required.
System Highlight Notes*
-
- 2004 – 2012 Video Interface Module contains PIP (Picture in Picture) function
- 2013 – 2017 Video Interface Module contains (Dynamic Parking Lines) – Parking Assistance System
Dynamic Parking Lines Shown (2012 + models)
BMW 5-Series / M5 System Compatibility
Model | Model Year | Interface System |
5-Series / M5 | 2007-2008 | CCC |
5-Series / M5 | 2009-2012 | CIC |
5-Series / M5
5-Series / M5 |
2013-2017
2017.5 + |
NBT NBT 2 EVO |
If your BMW is 2017.5 or newer, you’ll need to select the option that reads NBT 2 EVO for the compatible module system. Please refer to the pictures above to confirm you radio command system.
BMW 5-Series / M5 Interface Module Features
Input
-
- Plug & Play installation by LVDS cable
- 1 x Dedicated Rear-View Camera input
- 3 x A/V Inputs
- 1 x LCD input
Output
-
- 3 x Audio output
- 1 x LCD output
- Factory button function & provided remote control
Power
-
- Input power : 8V DC – 24V DC
- Consumption : 12W, Max
Board dimension
-
- 130mm x 105mm x 22mm

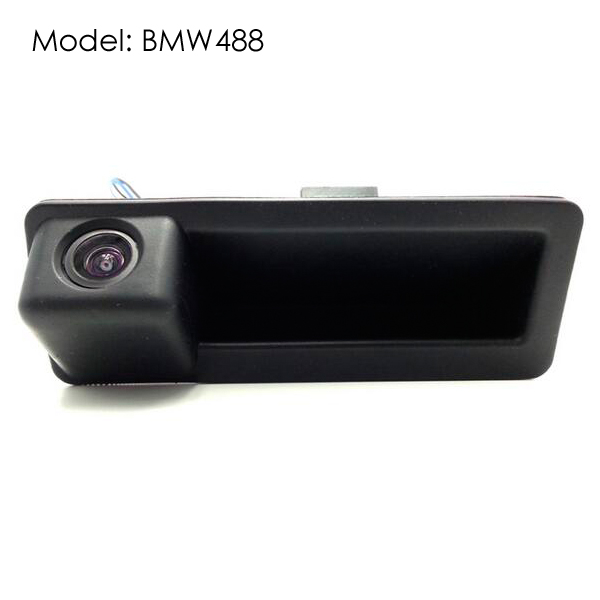

BMW 5-Series / M5 Flush Mount Backup Camera Features
Features
-
- OEM Style Backup Camera
- Flush Mount Camera
- Vivid Color High Resolution
- 170° Wide Angle View
- Parking Guide Lines Option (ON / OFF)
- Waterproof Ip68
- Shockproof
- Simple Installation
Specifications
155° Off Axis View Cone
IP69K Waterproof Certified (Can Handle Direct High Pressure Spray and Not Leak)
UV Protected and Waterproof Cabling
0.1 LUX Rating for Optimal Low-light Performance
32° to 160° Temp Performance Rating
Quick Connect/Disconnect
Optional Parking Lines ON/OFF
Optional Mirror Image ON/OFF
Water Deterrent Gasket (Provided for Sealed Mount to Vehicle Surface)
BMW 5-Series / M5 Integrated Backup Camera System Package Content
-
- BMW Video Interface Module
- Remote Control
- IR Cable
- Mode Cable (Toggle Switch)
- Power Cable with Protective Filter
- LCD Out Cable
- AV Harness
- OEM Style Flush Mount Backup Camera
- 30 Ft. RCA Extension Cable (Extension Power Leads)
- Camera Power/Ground Harness
- Camera Washer & Screw Set
- Waterproof Adhesive Tape
- Installation Instructions
Please note package content may differ depending on vehicle year and camera option.
