Description

BMW-NBT Multimedia Video Interface Module

The BMW-NBT systems package is a high definition video integration module for your BMW vehicle with OEM NBT Command System. The video interface connects through a simple plug and play OEM Integrated LVDS connection to the factory screen. The BMW-NBT Interface Module has a dedicated rear view camera input and 3 additional video inputs for external sources such as a DVD Player, Frontal Camera, or any external video source that uses an AV connection. This system is an OEM integration package that maintains your factory set up while upgrading your vehicle with full Multimedia Audio/Video Integration.

System Highlight Notes*

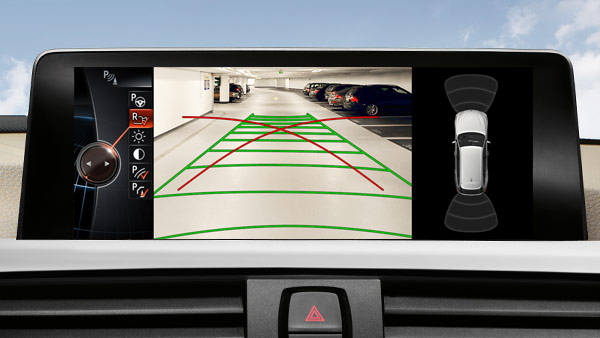

• • 2012 – 2017 Video Interface Module contains PIP & NBT (Dynamic Parking Lines) – Parking Assistance System

 BMW-NBT Multimedia Video Interface Module Compatibility

BMW-NBT Multimedia Video Interface Module Features

Input

• • Plug & Play installation by LVDS cable
  • 1 x Dedicated Rear-View Camera input
  • 3 x A/V Inputs
  • 1 x LCD input

Output

• • 3 x Audio output
  • 1 x LCD output
  • Factory button function & provided remote control

Power

• • Input power : 8V DC – 24V DC
  • Consumption : 12W, Max

Board dimension

• • 130mm x 105mm x 22mm

BMW-NBT Multimedia Video Interface Module Package Content

• • • BMW Video Interface Module



  • Remote Control
  • IR Cable
  • Mode Cable (Toggle Switch)
  • Power Cable with Protective Filter
  • LCD Out Cable
  • AV Harness
  • Installation Guide

Please note package content may differ depending on vehicle year and camera option.
