Mercedes-Benz W164 Multimedia Video Interface Module

$440.00

This OEM Integrated W164 Video Interface Module fits select NTG2 Mercedes-Benz equip vehicles. The video interface connects through a simple plug and play OEM Integrated LVDS connection to the factory screen and the system has video inputs to add external sources such as a backup camera to. The system is ready for use without any dealer activation or coding required.

50 in stock (can be backordered)

Extended Warranty *

Add up to 3 total years of warranty.

Description

Mercedes-Benz W164 Multimedia Video Interface Module

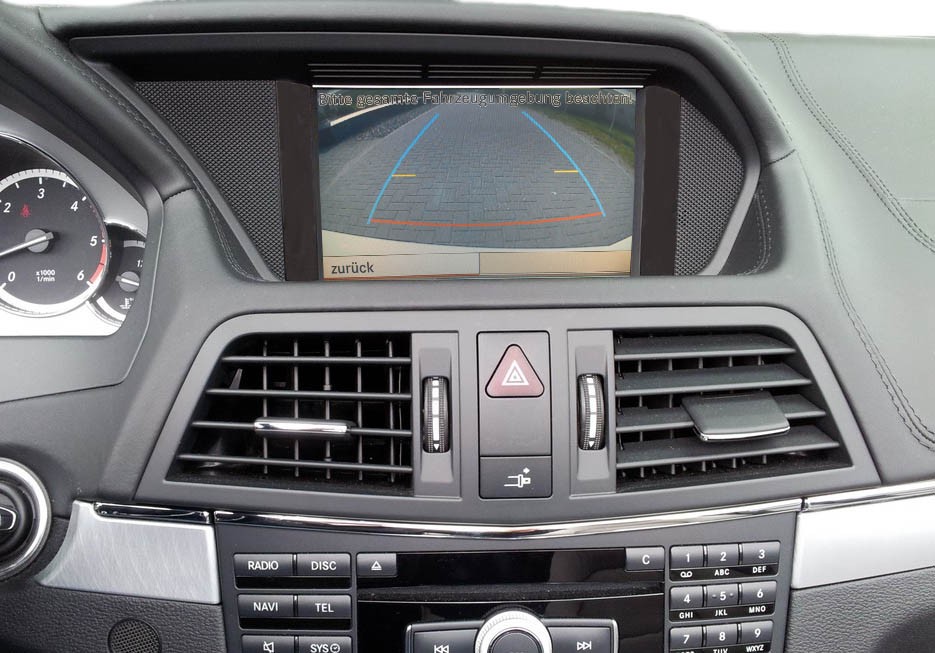

The W164 systems package is a high definition rear view camera and video integration module for your vehicle with or without Navigation. The video interface connects through a simple plug and play OEM Integrated LVDS connection to the factory screen. The W164 Interface Module has a dedicated rear view camera input that will automatically trigger when in reverse and revert back when in park or drive all using your OEM screen to display the backup camera feed. Along with a dedicated rear camera input, the W164 system also has 3 additional AV inputs should you decide to add a front camera (manual trigger or automatic trigger), DVD Player, TV Tuner or any external video source with AV inputs. This system is an OEM integration package that maintains your factory set up while upgrading your vehicle with full Multimedia Video Integration. Once installed, the system is ready for use without any dealer activation or coding required.

System Highlight Notes*

    • 2004 – 2008 Select Models – Plug and Play Video Interface Module

Mercedes-Benz W164 Compatibility



   Model   Model Year Interface System
B-Class

C-Class

2004 – 2008 (W245)

2004 – 2007 (W203)

NTG2
GL 2007 – 2008 (X164) NTG2
ML

R

2006 – 2008 (W164)

2006 – 2008 (W251)

NTG2



Mercedes-Benz W164 Interface Module Features

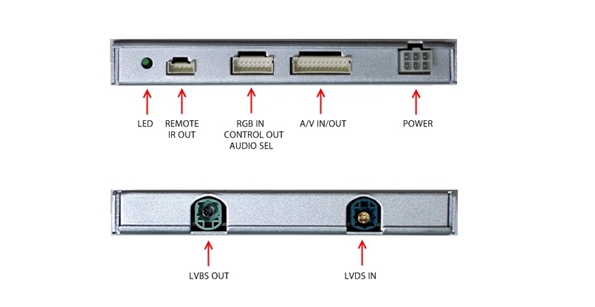

Input

    • Plug & Play installation by LVDS cable
    • 1 x Dedicated Rear-View Camera input
    • 3 x A/V Inputs
    • 1 x LCD input



Output

    • 3 x Audio output
    • 1 x LCD output
    • Factory button function & provided remote control



Power

    • Input power : 8V DC – 24V DC
    • Consumption : 12W, Max



Board dimension

    • 130mm x 105mm x 22mm

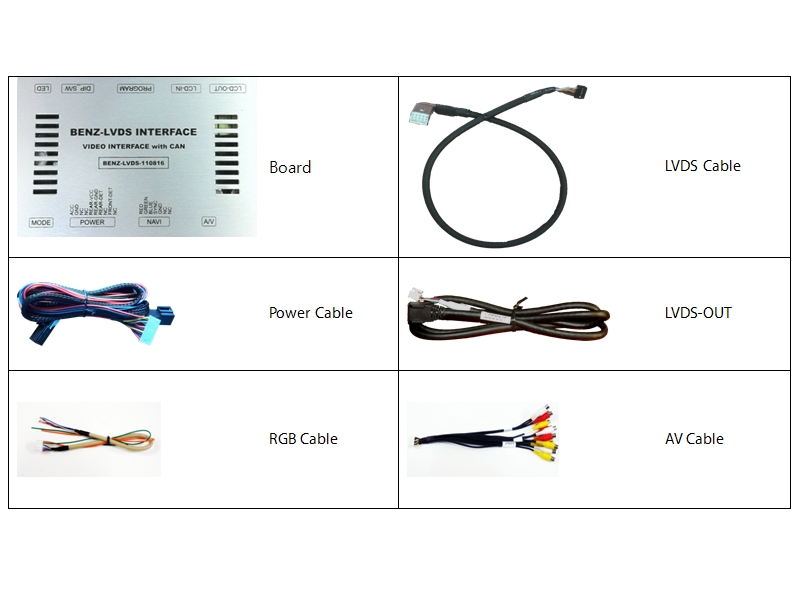

Mercedes-Benz W164 System Package Content

    • W164 Video Interface Module
    • Remote Control
    • IR Cable
    • Mode Cable (Toggle Switch)
    • Power Cable with Protective Filter
    • LCD Out Cable
    • AV Harness
    • OEM Style Flush Mount Backup Camera (Sony CCD HD)
    • 30 Ft. RCA Extension Cable (Extension Power Leads)
    • Camera Power/Ground Harness
    • Camera Washer & Screw Set
    • Waterproof Adhesive Tape
    • Installation Instructions







Please note package content may differ depending on vehicle year and camera option.



Additional information

Weight 3.0000 lbs
Dimensions 12 × 8 × 6 in
Year

Make

Model

Make Model Year
Make Model Year
Mercedes-Benz B-Class 2004 - 2005
Mercedes-Benz B-Class 2005 - 2006
Mercedes-Benz B-Class 2006 - 2007
Mercedes-Benz B-Class 2007 - 2008
Mercedes-Benz B-Class 2008
Mercedes-Benz C-Class 2004 - 2005
Mercedes-Benz C-Class 2005 - 2006
Mercedes-Benz C-Class 2006 - 2007
Mercedes-Benz C-Class 2007
Mercedes-Benz GL 2007 - 2008
Mercedes-Benz GL 2008
Mercedes-Benz ML 2006 - 2007
Mercedes-Benz ML 2007 - 2008
Mercedes-Benz ML 2008
Mercedes-Benz R 2006 - 2007
Mercedes-Benz R 2007 - 2008
Mercedes-Benz R 2008
