Audi (AMI INT MMI) Multimedia Video Interface Module

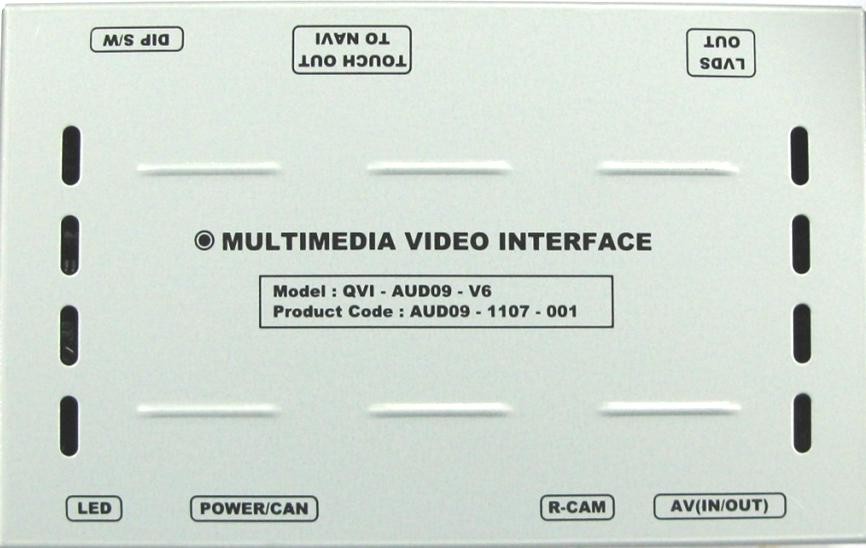

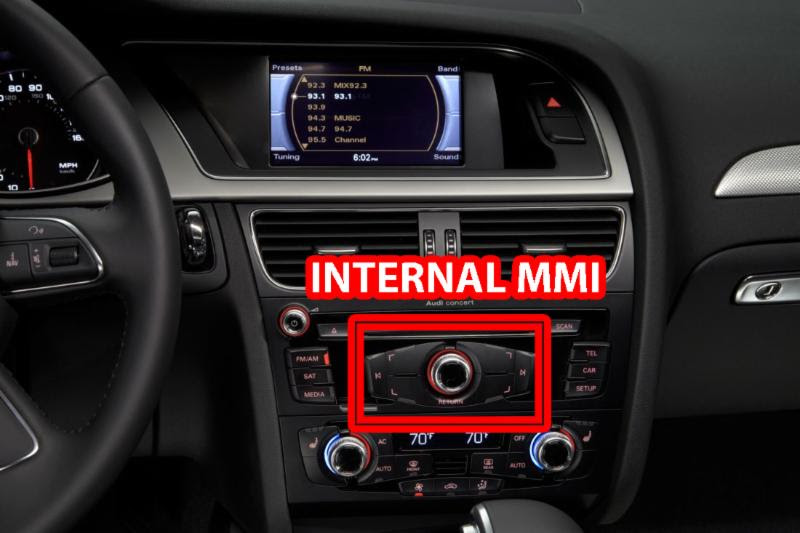

The A4L systems package is a high definition video integration module for your Audi vehicle without navigation / 2G MMI. The video interface connects through a simple plug and play OEM Integrated LVDS connection to the factory screen. The A4L Interface Module has a dedicated rear view camera input that will automatically trigger when in reverse and revert back when in park or drive all using your OEM screen to display the backup camera feed. Along with a dedicated rear camera input, the A4L system also has 3 additional AV inputs should you decide to add a front camera (manual trigger), DVD Player, TV Tuner or any external video source with AV inputs. This system is an OEM integration package that maintains your factory set up while upgrading your vehicle with full Multimedia Video Integration.

Audi Multimedia Video Interface Module Compatibility

Audi Multimedia Video Interface Module Features

Input

• • Plug & Play installation by LVDS cable
  • 1 x Dedicated Rear-View Camera input
  • 3 x A/V Inputs
  • 1 x LCD input

Output

• • 3 x Audio output
  • 1 x LCD output
  • Factory button function & provided remote control

Power

• • Input power : 8V DC – 24V DC
  • Consumption : 12W, Max

Board dimension

• • 130mm x 105mm x 22mm

Audi Multimedia Video Interface Module Package Content

• • Audi Video Interface Module
  • Remote Control
  • IR Cable
  • Mode Cable (Toggle Switch)
  • Power Cable with Protective Filter
  • LCD Out Cable
  • AV Harness
  • Installation Instructions

Please note package content may differ depending on vehicle year and camera option.
