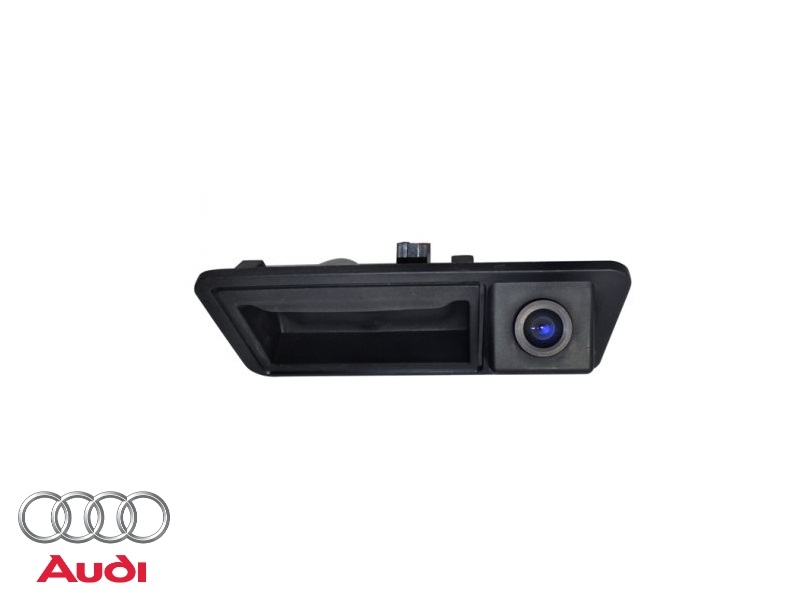

Audi OEM Integrated Tailgate Handle Rear-View Camera

$70.00

This OEM Integrated Audi-Tailgate Rear-View Tailgate Handle Backup Camera is designed for AUDI models: A4, S4, RS4, A5, S5, RS5, A6, S6, RS6, A8, S8, RS8, Q5, SQ5, RS Q5, Q7, SQ7, RS Q7. The Audi-Tailgate can be integrated to any one of our Audi Interface Modules and also our Rear-View Mirror Systems.

50 in stock (can be backordered)

Extended Warranty *

Add up to 3 total years of warranty.

Categories: , SKU: Audi-Tailgate

Description

Audi OEM Integrated Tailgate Handle Camera

The Audi-Tailgate is designed especially for Audi models as a factory parking and rear-view assist upgrade. The OEM Integrated Camera replaces and mounts within the tailgate handle of the trunk through a simple installation that provides a wide field of vision and a colorful high definition image.

*For compatibility, please make sure your current tailgate latch measures roughly 4 1/2 inches across*



Audi OEM Integrated Tailgate Handle Rear-View Camera Compatibility

AUDI Model Model Year
A4 / S4 / RS4 2009-2015
A5 / S5 / RS5 2009-2015
A6 / S6 / RS6 2009-2015
A8 / S8 / RS8 2012-2015
Q5 / SQ5 / RS Q5 2009-2015
Q7 / SQ7 / RS Q7 2012-2015

AUDI OEM Integrated Tailgate Handle Rear-View Camera Features



Features

  • Tailgate Handle Camera Fitment
  • Trunk Latch Soft Pad Trigger
  • Sony CCD HD Lens Built In
  • Vivid Color – High Resolution 720p
  • 170° Wide Angle Lens
  • Parking Guideline Switcher (ON / OFF)
  • Shockproof
  • Simple Installation
  • No Drilling or Cutting Required
  • Waterproof Ip68



Specifications

Specification Terms Product Values
Image Sensor CCD HD Sony
Power Supply DC12V±1V
Power <1W
Effective Pixels 728*582
Resolution (TV Line) 520
Electronic Shutter 1/60, 1/10,000 sec
Lens Angle 170°
Min. Illumination 0.01lux
IP Rating Ip68
S/N Ratio ≥48dB
Video Output 1.0vp-p.75Ω
Current Consumption 30-60mA
Operating Temp. (F) -20~+100
Storage Temp. (F) -40~+120
TV System NTSC/PAL
White Balance Auto





AUDI OEM Integrated Tailgate Handle Rear-View Camera Package Content



    • Audi Tailgate Handle Camera (Sony CCD HD)
    • Power/Ground harness cable
    • RCA Extension Cable (Power Leads Built In)
    • Installation Instructions














Note! Our Sony CCD HD Camera is meant to use a 12v ignition or accessory to power it up as long as the vehicle is powered up. This will insure a quick switch and live feed when in reverse.



Additional information

Weight 1 lbs
Dimensions 8 × 5 × 4 in
Make

Model

Year

Make Model Year
Make Model Year
Audi A4 2009 - 2015
Audi A5 2009 - 2015
Audi A6 2009 - 2015
Audi A8 2012 - 2015
Audi Q5 2009 - 2015
Audi Q7 2012 - 2015
Audi RS Q5 2009 - 2015
Audi RS Q7 2012 - 2015
Audi RS4 2009 - 2015
Audi RS5 2009 - 2015
Audi RS6 2009 - 2015
Audi RS8 2012 - 2015
Audi S4 2009 - 2015
Audi S5 2009 - 2015
Audi S6 2009 - 2015
Audi S8 2012 - 2015
Audi SQ5 2009 - 2015
Audi SQ7 2012 - 2015
