Toyota Tacoma OEM Integrated Tailgate Handle Rear-View Camera

$190.00$230.00

This OEM Integrated Toyota Rear-View Tailgate Handle Backup Camera is designed for Toyota Tacoma models. The Camera can be integrated to an OEM screen using a factory integrated T-Harness (sold separately), a rear-view mirror system or any aftermarket head unit with rear RCA input.

Clear

Extended Warranty *

Add up to 3 total years of warranty.

Categories: , SKU: TG-Tacoma

Description

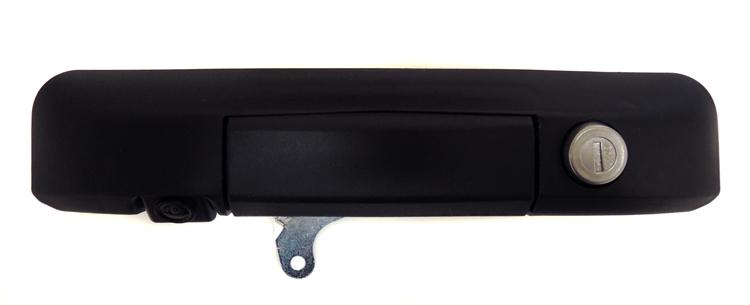

Toyota Tacoma OEM Integrated Tailgate Handle Rear-View Camera

The TG-Tacoma is designed especially for Toyota Tacoma models as a factory parking and rear-view assist upgrade. The OEM Integrated Camera replaces and mounts within the tailgate handle of the trunk through a simple installation that provides a wide field of vision and a colorful high definition image.



Toyota OEM Integrated Tailgate Handle Rear-View Camera Compatibility

  TOYOTA Model   Model Year
Tacoma Access

Tacoma Double Cab

Tacoma Regular

Tacoma All Models

2006 – 2015

2006 – 2015

2006 – 2015

2014 – 2015







Toyota OEM Integrated Tailgate Handle Rear-View Camera Features



Features

Tailgate Handle Camera Fitment
Vivid Color High Resolution
170° Wide Angle View
Parking Guide Lines (can be turned on/off)
Waterproof Ip68
Shockproof
Simple Installation
No drilling or cutting wires required



Specifications

Specification Terms Product Values
Image Sensor CMOS
Power Supply DC12V±1V
Power <1W
Effective Pixels 728*582
Resolution (TV Line) 520
Electronic Shutter 1/60, 1/10,000 sec
Lens Angle 170°
Min. Illumination 0.01lux
IP Rating Ip68
S/N Ratio ≥48dB
Video Output 1.0vp-p.75Ω
Current Consumption 30-60mA
Operating Temp. (F) -20~+100
Storage Temp. (F) -40~+120
TV System NTSC/PAL
White Balance Auto





















Toyota OEM Integrated Tailgate Handle Rear-View Camera Package Content





    • Tacoma Tailgate Handle Camera – Black
    • Power/Ground Harness
    • 40 ft. Extension RCA Cable
    • Installation Instructions



Additional information

Weight 2 lbs
Dimensions 12 × 8 × 6 in
