Mercedes-Benz B-Class OEM Integrated Backup Camera System

$490.00

This OEM Integrated MERCEDES-BENZ Rear-View Backup Camera kit fits select MERCEDES-BENZ B-Class models. The video interface connects through a simple plug and play OEM Integrated LVDS connection to the factory screen and the system includes our flush mount camera. You can upgrade to our 106S 360 camera under options.





50 in stock (can be backordered)

Vehicle Year & Command System *

Select your vehicle command system.

Camera Option *

Choose which backup camera you’d like for your vehicle.

Front Camera Add-On

Add a front camera that will directly plug onto the system.

Screen Mirroring Add-On

Add a screen mirroring device to mirror your phones screen onto your vehicles screen.

Extended Warranty *

Add up to 3 total years of warranty.

Category: SKU: FMC-A-Class

Description

Mercedes-Benz B-Class OEM Integrated Backup Camera System

The FMC-B-Class systems package is a high definition rear view camera and video integration module for your vehicle with or without Navigation. The video interface connects through a simple plug and play OEM Integrated LVDS connection to the factory screen. The FMC-B-Class Interface Module has a dedicated rear view camera input that will automatically trigger when in reverse and revert back when in park or drive all using your OEM screen to display the backup camera feed. Along with a dedicated rear camera input, the FMC-B-Class system also has 3 additional AV inputs should you decide to add a front camera (manual trigger or automatic trigger), DVD Player, TV Tuner or any external video source with AV inputs. This system is an OEM integration package that maintains your factory set up while upgrading your vehicle with full Multimedia Video Integration. Once installed, the system is ready for use without any dealer activation or coding required.

System Highlight Notes*

    • NTG2 / NTG3  (Picture in Picture) Function
    • NTG4 / NTG5 Video Interface Module Contains (Dynamic Parking Lines) – Parking Assistance System

Dynamic Parking Lines Shown (NTG4 and up)

Mercedes-Benz B-Class System Compatibility

   Model   Model Year Interface System
B-Class 2003-2008 NTG2 (W211)
B-Class 2009-2011 NTG3 (w/ Sqaure Connector)
B-Class

B-Class

2012-2015

2016 +

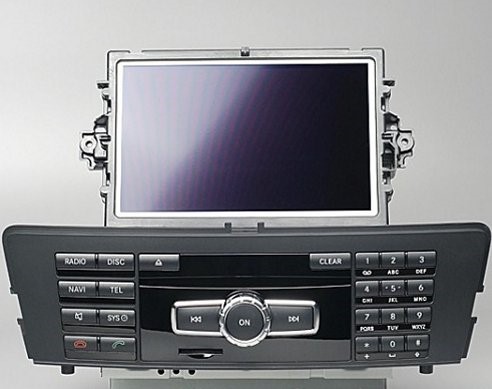

NTG4 (W204)

NTG5 (W222)




Mercedes-Benz B-Class Interface Module Features



Input



    • Plug & Play installation by LVDS cable
    • 1 x Dedicated Rear-View Camera input
    • 3 x A/V Inputs
    • 1 x LCD input



Output

    • 3 x Audio output
    • 1 x LCD output
    • Factory button function & provided remote control



Power

    • Input power : 8V DC – 24V DC
    • Consumption : 12W, Max



Board dimension

    • 130mm x 105mm x 22mm

Mercedes-Benz B-Class Flush Mount Backup Camera Features



Features



    • OEM Style Backup Camera
    • SONY CCD HD
    • Vivid Color High Resolution
    • 170° Wide Angle View
    • Parking Guide Lines Option (ON / OFF)
    • Waterproof Ip68
    • Shockproof
    • Simple Installation



Specifications

Specification Terms Product Values
Image Sensor CCD HD Sony
Power Supply DC12V±1V
Power <1W
Effective Pixels 728*582
Resolution (TV Line) 520
Electronic Shutter 1/60, 1/10,000 sec
Lens Angle 170°
Min. Illumination 0.01lux
IP Rating Ip68
S/N Ratio ≥48dB
Video Output 1.0vp-p.75Ω
Current Consumption 30-60mA
Operating Temp. (F) -20~+100
Storage Temp. (F) -40~+120
TV System NTSC/PAL
White Balance Auto





Mercedes-Benz B-Class Integrated Backup Camera System Package Content

    • Mercedes-Benz Video Interface Module
    • Factory Integrated LCD Cable
    • Factory Integrated LVDS Cable
    • Sub-Board
    • Power Harness
    • AV Harness
    • IR Cable
    • Mode Cable
    • Remote Control
    • Sony CCD HD Flush Mount Camera
    • Camera Power Harness
    • Camera RCA Extension Cable
    • Camera Screw Set
    • Installation Guide







Please note package content may differ depending on vehicle year and camera option.






Additional information

Weight 3 lbs
Dimensions 12 × 8 × 6 in
Year

Make

Model

Make Model Year
Make Model Year
Mercedes-Benz B-Class 2003 - 2004
Mercedes-Benz B-Class 2004 - 2019
