MAZDA CX-3 OEM Integrated Backup Camera

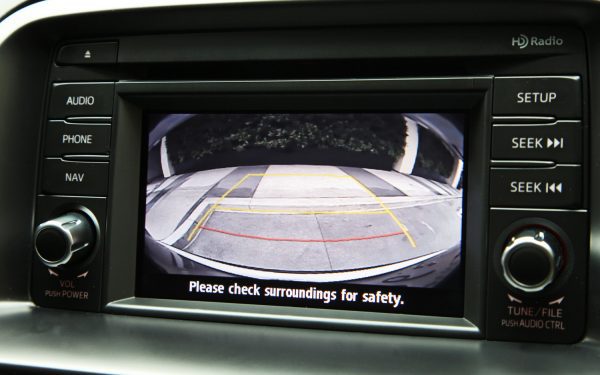

The FC-MAZD systems package is a comprehensive high definition Rear View Camera and Factory Connect Harness for your MAZDA. The OEM style Rear View Camera is mounted above the license plate area and connects to the Factory specific MAZDA Harness behind the existing screen. Once the vehicle is placed into reverse the high resolution image of the backup camera will automatically appear on the factory display for safe navigation. This kit is a simple OEM integration package that maintains your factory set up while upgrading your vehicle with a Rear View Camera System.
MAZDA CX-3 Systems COMPATIBILITY
| MAZDA Model | Model Year | Multimedia System |
| Mazda CX-9 | 2013-2014 | with 6.1″ LCD Screen |
| Mazda CX-9 | 2015-2017 | with 6.1″ LCD Screen |
MAZDA CX-3 Factory Connect Harness FEATURES
Features
-
- Factory MAZDA Connect Harness
- Plug & Play configuration
- Quick Connect to Video Cable and Rear Camera
- Automatic Reverse trigger activation
- Rear Camera Input (RCA)
- Parking Guide Line Option (ON/OFF)
MAZDA CX-3 Backup Camera FEATURES
Features
-
- OEM Style Backup Camera fitment
- Vivid Color High Resolution
- 170° Wide Angle View
- Parking Guide Lines (can be turned on/off)
- Waterproof Ip68
- Shockproof
- Simple Installation
Specifications
155° Off Axis View Cone
IP69K Waterproof Certified (Can Handle Direct High Pressure Spray and Not Leak)
UV Protected and Waterproof Cabling
0.1 LUX Rating for Optimal Low-light Performance
32° to 160° Temp Performance Rating
Quick Connect/Disconnect
Optional Parking Lines ON/OFF
Optional Mirror Image ON/OFF
Water Deterrent Gasket (Provided for Sealed Mount to Vehicle Surface)
MAZDA CX-3 OEM Integrated Backup Camera System PACKAGE CONTENT
-

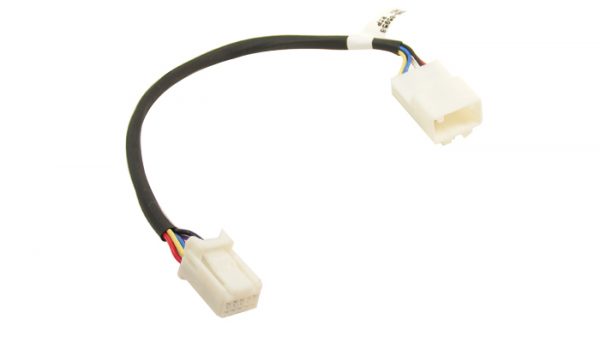

MAZDA Factory Connect Harness- MAZDA OEM Style Universal Mount Backup Camera
- 30FT Video Cable
- Camera Power/Ground Harness
- Male to Male RCA Adapter
- Camera sealer pad
- Installation Instructions
- Owners Manual/Warranty Card
