Description
FORD F-250 OEM Integrated Emblem Backup Camera

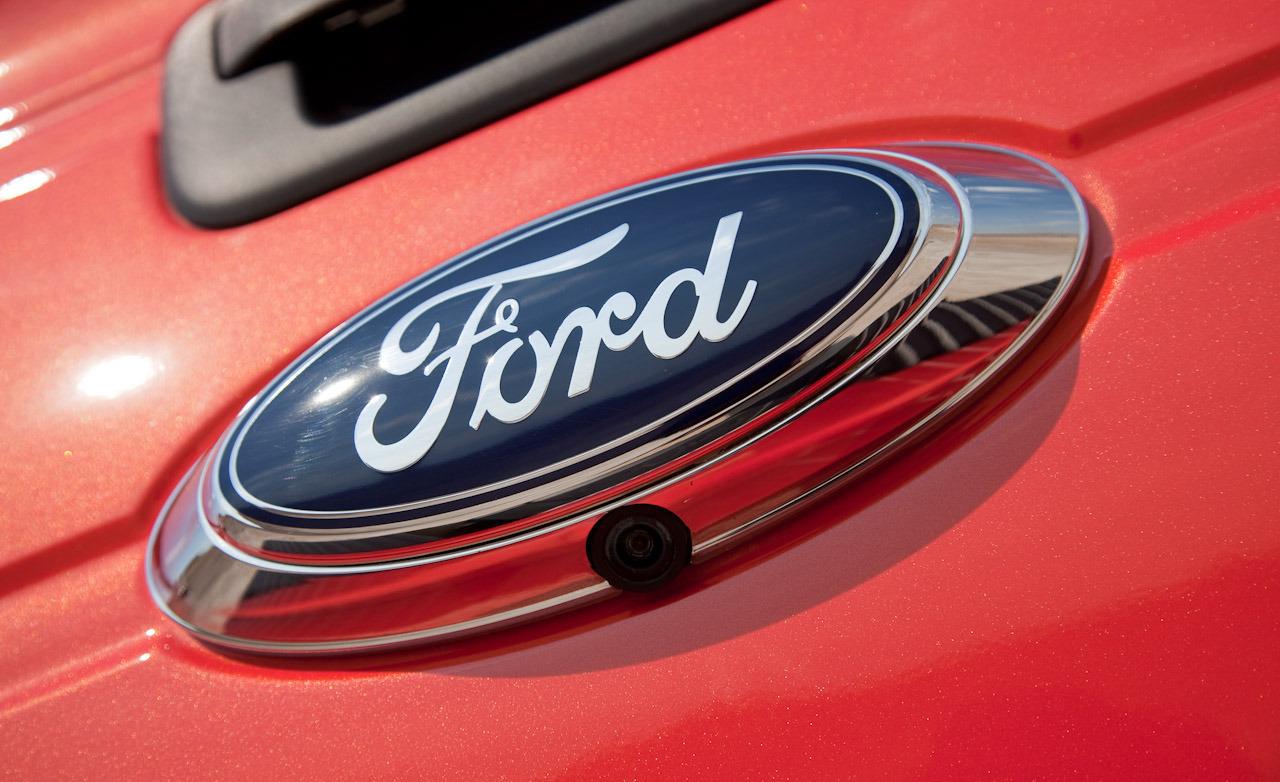

The Ford F-250 OEM Integrated Emblem Backup Camera System is a high definition rear view camera and video integration module for your FORD vehicle with Hard Drive SYNC or MyFord Touch Navigation. The OEM Integrated Backup Camera replaces the rear FORD Bezel on the tailgate, once connected to the video interface module, the image appears automatically in high definition when the vehicle is placed into reverse. The Integration Module is a fully programmed plug and play Interface that allows for Video In Motion and has a dedicated rear view camera input along with 2 additional video inputs for external sources such as a DVD Player, Frontal Vision Camera, or iPod/iPhone. This system is a simple OEM integration package that maintains your factory set up and only takes a few simple steps to install, while upgrading your vehicle with backup camera and full Multimedia Video integration.
FORD F-250 Systems COMPATIBILITY
FORD Model | Model Year | Interface System |
F-250 | 2009-2012 | SYNC |
F-250 | 2013-2015 | MyFord Touch |
FORD F-250 INTERFACE FEATURES
Input
-
- Plug & Play installation by LCD Connector
- Connected devices controlled through factory Steering Wheel buttons
- 1 x Dedicated Rear-View Camera input
- 2 x Video Inputs
- USB Updateable
Output
-
- Unlocks Screen for Video In Motion in all gears
- 1 x Rear View Camera Image
- 2 x Video Source Displays
- 2 x 12V Output for external sources
Highlights
-
- Single Plug and Play Connection for Installation
- No wire cutting or other connections needed
- Unlocks factory screen to display sources in motion
- View any video source in all gears
- Simple removal for Leased Vehicles
FORD F-250 OEM Integrated Style Backup Camera FEATURES
Features
-
- Tailgate Handle Camera fitment
- Flush Mount Camera
- Vivid Color High Resolution
- 170° Wide Angle View
- Parking Guide Lines (can be turned on/off)
- Waterproof Ip68
- Shockproof
- Simple Installation
Specifications
155° Off Axis View Cone
IP69K Waterproof Certified (Can Handle Direct High Pressure Spray and Not Leak)
UV Protected and Waterproof Cabling
0.1 LUX Rating for Optimal Low-light Performance
32° to 160° Temp Performance Rating
Quick Connect/Disconnect
Optional Parking Lines ON/OFF
Optional Mirror Image ON/OFF
Water Deterrent Gasket (Provided for Sealed Mount to Vehicle Surface)
FORD F-250 Backup Camera System PACKAGE CONTENT
-
- SYNC / MyTouch Integration Module
- Plug & Play Multimedia Harness
- Ford Emblem Rear View Camera
- Power/Ground harness cable
- 40FT Video cable
- Installation Instructions
- Owners Manual/Warranty Card
