FORD F-150 OEM Integrated Emblem Backup Camera System


This OEM Integrated FORD Rear-View Backup Camera kit fits all 2013-2016 FORD F-150 models with SYNC & MyFord Touch Navigation Systems. The comprehensive Multimedia Video Interface integrates behind the factory screen through a simple plug and play connection to enable Video In Motion and the viewing of external video sources such as Backup Camera (provided in kit), DVD player, TV tuner, Video Game Console, Smartphone, and optional Navigation on your factory built-in car monitor.

Extended Warranty *

Add up to 3 total years of warranty.


FORD F-150 OEM Integrated Emblem Backup Camera

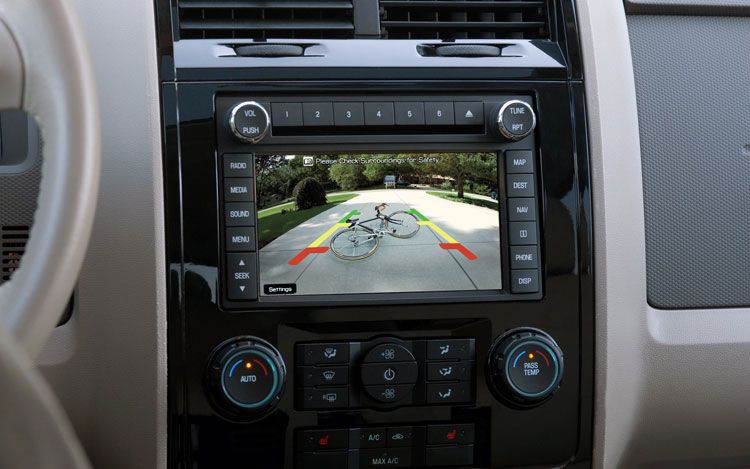

The Ford F-150 OEM Integrated Emblem Backup Camera is a high definition rear view camera and video integration module for your FORD vehicle with Hard Drive SYNC or MyFord Touch Navigation. The OEM Integrated Backup Camera replaces the rear FORD Bezel on the tailgate, once connected to the video interface module, the image appears automatically in high definition when the vehicle is placed into reverse. The Lockpick Module is a fully programmed plug and play Interface that allows for Video In Motion and has a dedicated rear view camera input along with 2 additional video inputs for external sources such as a DVD Player, Frontal Vision Camera, or iPod/iPhone. This system is a simple OEM integration package that maintains your factory set up and only takes a few simple steps to install, while upgrading your vehicle with backup camera and full Multimedia Video integration.


FORD Model   Model Year Interface System
F-150 2013-2016 4.2″ SYNC
F-150 Raptor 2013-2016 4.2″ SYNC
F-150 2013-2016 8″ MyFord Touch
F-150 Raptor  2013-2016 8″ MyFord Touch






    • Plug & Play installation by LCD Connector
    • Connected devices controlled through factory Steering Wheel buttons
    • 1 x Dedicated Rear-View Camera input
    • 2 x Video Inputs
    • USB Updateable



    • Unlocks Screen for Video In Motion in all gears
    • 1 x Rear View Camera Image
    • 2 x Video Source Displays
    • 2 x 12V Output for external sources



    • Single Plug and Play Connection for Installation
    • No wire cutting or other connections needed
    • Unlocks factory screen to display sources in motion
    • View any video source in all gears
    • Simple removal for Leased Vehicles





FORD F-150 OEM Integrated Style Backup Camera FEATURES




    • Ford Logo Camera fitment
    • Flush Mount Camera
    • Vivid Color High Resolution
    • 170° Wide Angle View
    • Parking Guide Lines (can be turned on/off)
    • Waterproof Ip68
    • Shockproof
    • Simple Installation



155° Off Axis View Cone

IP69K Waterproof Certified (Can Handle Direct High Pressure Spray and Not Leak)

UV Protected and Waterproof Cabling

0.1 LUX Rating for Optimal Low-light Performance

32° to 160° Temp Performance Rating

Quick Connect/Disconnect

Optional Parking Lines ON/OFF

Optional Mirror Image ON/OFF

Water Deterrent Gasket (Provided for Sealed Mount to Vehicle Surface)


FORD F-150 Backup Camera System PACKAGE CONTENT


    • SYNC / MyTouch Integration Module
    • Plug & Play Multimedia Harness
    • Ford Emblem Rear View Camera
    • Power/Ground harness cable
    • 35FT Video cable
    • Installation Instructions
    • Owners Manual/Warranty Card


Additional information

Weight 3.0000 lbs

FORD F-150 Year
