CADILLAC CTS OEM Integrated Backup Camera System

$440.00

This OEM Integrated CADILLAC Rear-View Camera kit fits all 2013-2017 CTS models with 8″ Cue Screen. The system includes the factory CADILLAC harness that connects to the vehicle screen and the oem style backup camera that integrates seamlessly.

Extended Warranty *

Add up to 3 total years of warranty.

Description

CADILLAC CTS OEM Integrated Backup Camera

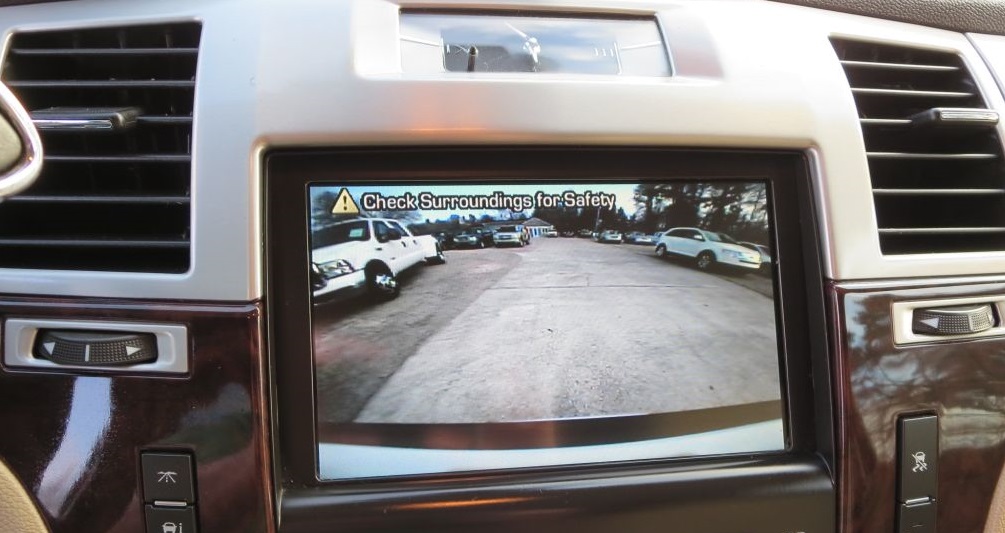

The FC-GMIO56-XTS systems package is a comprehensive high definition Rear View Camera and Factory Connect Harness for your CADILLAC. The OEM style Rear View Camera is mounted above the license plate area and connects to the Factory specific CADILLAC Harness behind the existing screen. Once the vehicle is placed into reverse the high resolution image of the backup camera will automatically appear on the factory display for safe navigation. This kit is a simple OEM integration package that maintains your factory set up while upgrading your vehicle with a Rear View Camera System.

CADILLAC CTS Systems COMPATIBILITY

CADILLAC Model   Model Year Interface System
CTS 2014-2017       CDGVIF





CADILLAC CTS INTERFACE MODULE FEATURES



Input

    • Installation by Plug & Play LVDS Cable
    • DVD & NAVI control by through optional touch screen panel
    • 1 x dedicated Rear-View Camera input
    • 3 x A/V Inputs
    • 1 x LCD input



Output

    • 2 x CVBS output (video out for headrest monitor installation)
    • 4 x Audio select output
    • 1 x Cayenne output
    • Remote control & Toggle switch provided



Power

    • Input power : 8V DC – 24V DC
    • Consumption : 5W, Max



Board dimension

    • 130mm x 105mm x 22mm









CADILLAC CTS OEM Integrated Style Backup Camera FEATURES



Features

    • Vivid Color High Resolution
    • 170° Wide Angle View
    • Parking Guide Lines (can be turned on/off)
    • Waterproof Ip68
    • Shockproof
    • Simple Installation



Specifications

155° Off Axis View Cone
IP69K Waterproof Certified (Can Handle Direct High Pressure Spray and Not Leak)
UV Protected and Waterproof Cabling
0.1 LUX Rating for Optimal Low-light Performance
32° to 160° Temp Performance Rating
Quick Connect/Disconnect
Optional Parking Lines ON/OFF
Optional Mirror Image ON/OFF
Water Deterrent Gasket (Provided for Sealed Mount to Vehicle Surface)











CADILLAC CTS Backup Camera System PACKAGE CONTENT



    • CADILLAC GVIF Car Video Interface Main Board
    • Remote control unit with IR cable or OSD Keypad
    • Cable set
    • Power Cable with protective filter
    • LCD Out cable
    • AV bundle cable
    • NAVI (RGB) cable
    • Mode switch cable
    • LCD cable
    • Universal Mount Backup Camera
    • Power/Ground harness cable
    • 30FT Video cable
    • Installation Instructions
    • Owners Manual/Warranty Card



Additional information

Weight 3.0000 lbs
