Description
JEEP WRANGLER OEM Integrated Backup Camera

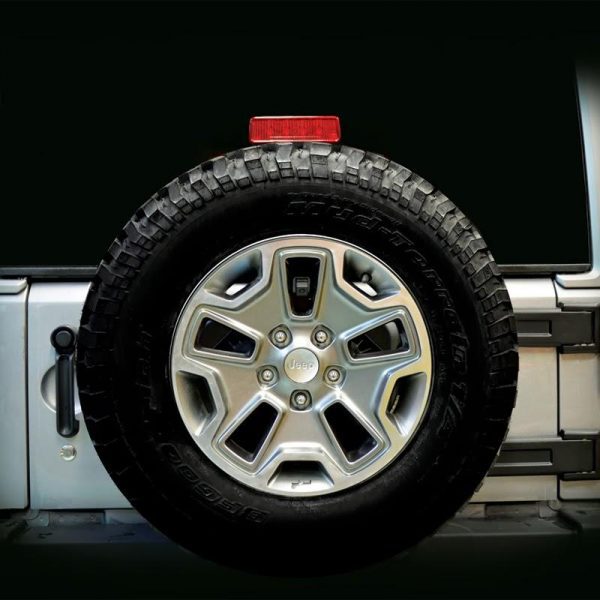

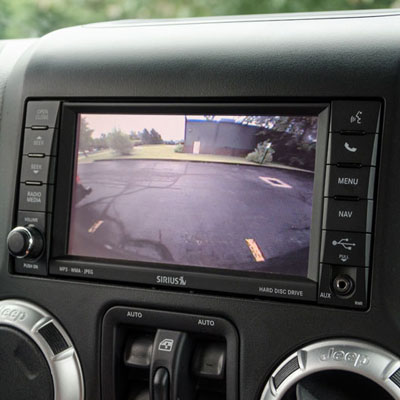

The Jeep Wrangler Backup Camera systems is a high definition rear view camera and video integration module for your JEEP vehicle with MyGig Radio. The OEM style backup camera mounts on the spare tire bracket. Once connected to the video interface module, the image appears automatically in high definition when the vehicle is placed into reverse. The Integration Module is a fully programmed plug and play Interface that allows for Video integration.
** THIS KIT DOES NOT REQUIRE DEALER ACTIVATION. IT’S A PLUG AND PLAY THAT WILL TRIGGER ONCE INSTALLED **
JEEP WRANGLER Systems COMPATIBILITY
| JEEP Model | Model Year | Interface System |
| Wrangler | 2009-2017 | with MyGig Radio |
*Works with all MyGig Radios including: RHB / RBZ / RHR
*Note: NON U.S. Radios not supported: REP / RHP / REZ / REW / RBZ / REJ
JEEP WRANGLER Lockpick FEATURES
Input
-
- Plug & Play installation by LCD Connector
- Connected devices controlled through factory Steering Wheel buttons
- 1 x Dedicated Rear-View Camera input
- 2 x Video Inputs
- USB Updateable
Output
-

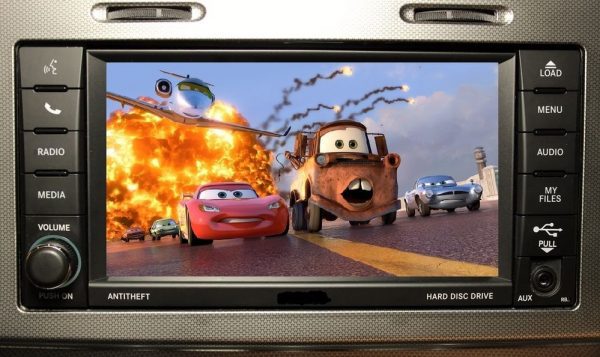

- Unlocks Screen for Video In Motion in all gears
- 1 x Rear View Camera Image
- 2 x Video Source Displays
- 2 x 12V Output for external sources
Highlights
-
- Single Plug and Play Connection for Installation
- No wire cutting or other connections needed
- Unlocks factory screen to display sources in motion
- View any video source in all gears
- Simple removal for Leased Vehicles
JEEP WRANGLER OEM Style Backup Camera FEATURES
Features
-
- Vivid Color High Resolution
- 170° Wide Angle View

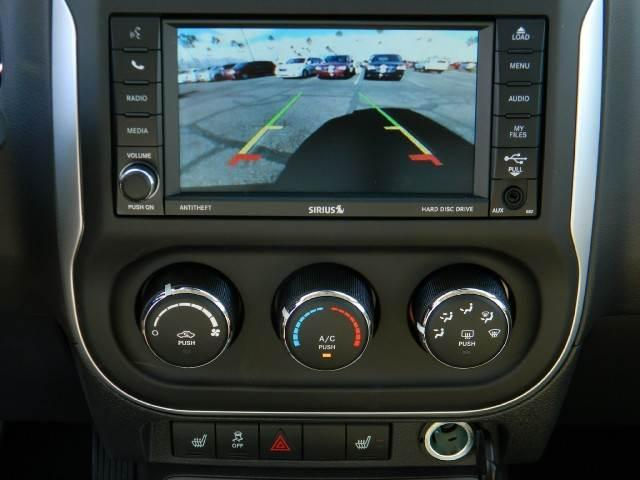

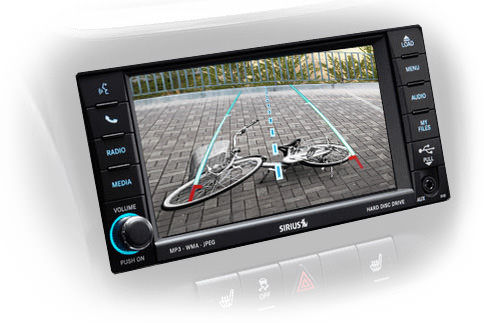

- Parking Guide Lines (can be turned on/off)
- Waterproof Ip68
- Shockproof
- Simple Installation
Specifications
155° Off Axis View Cone
IP69K Waterproof Certified (Can Handle Direct High Pressure Spray and Not Leak)
UV Protected and Waterproof Cabling
0.1 LUX Rating for Optimal Low-light Performance
32° to 160° Temp Performance Rating
Quick Connect/Disconnect
Optional Parking Lines ON/OFF
Optional Mirror Image ON/OFF
Water Deterrent Gasket (Provided for Sealed Mount to Vehicle Surface)

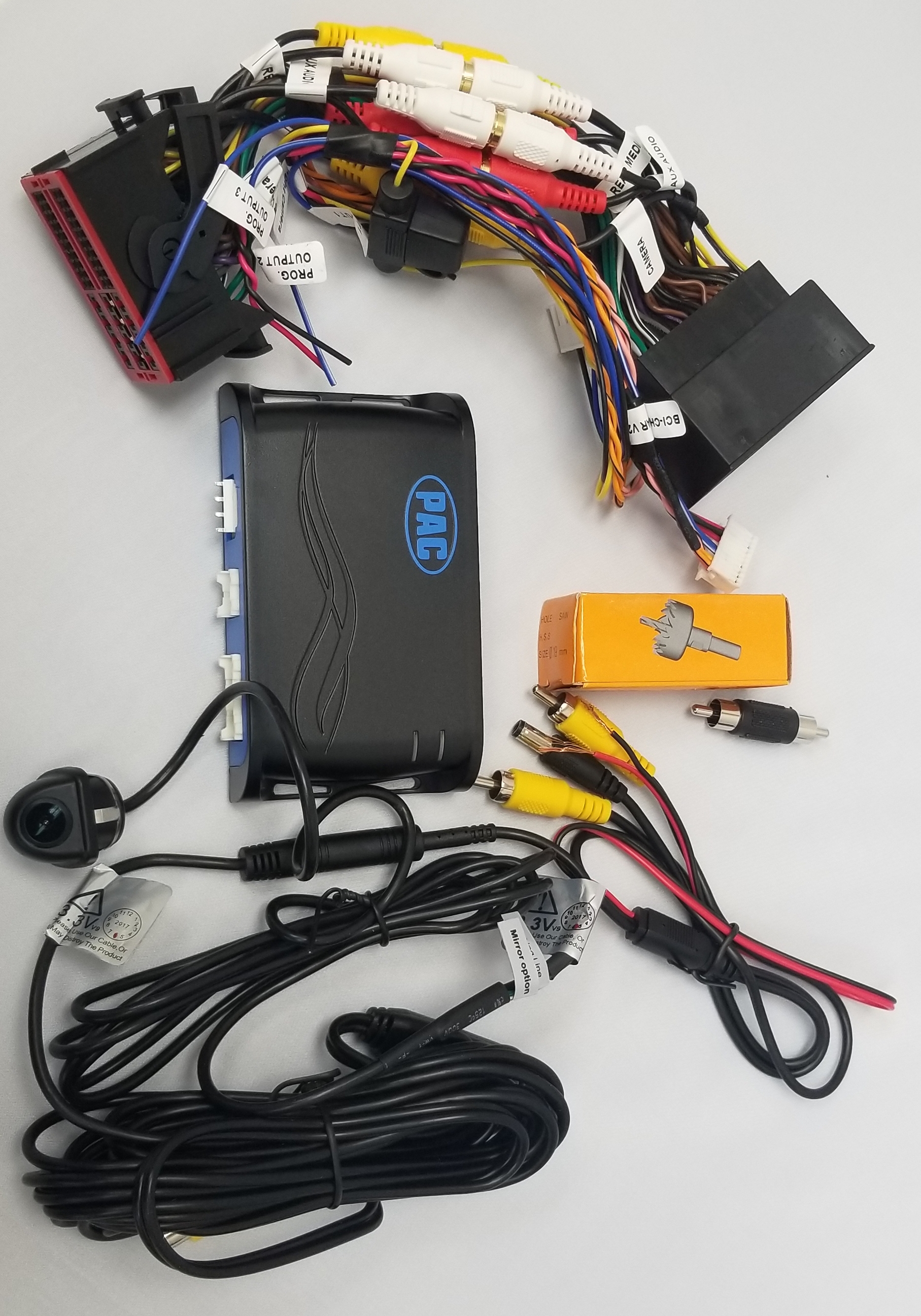

JEEP WRANGLER Backup Camera System PACKAGE CONTENT
-
- Multimedia Interface
- Plug & Play Multimedia Harness
- OEM Style JEEP Rear View Tire Mount Camera
- Power/Ground harness cable
- 35FT Video cable
- Installation Instructions
