Description

JEEP PATRIOT OEM Integrated Backup Camera

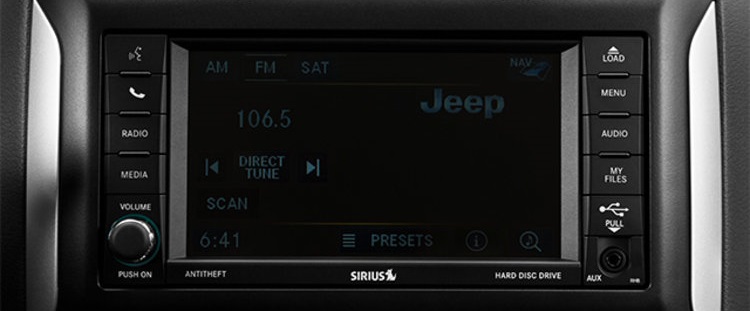

The FC-PAT systems package is a comprehensive high definition Rear View Camera and Factory Connect Harness for your JEEP. The OEM style Rear View Camera is mounted above the license plate area. Once the vehicle is placed into reverse the high resolution image of the backup camera will automatically appear on the factory display for safe navigation. This kit is a simple OEM Integration package that maintains your factory set up while upgrading your vehicle with a Rear View Camera System.

**DEALER ACTIVATION OR OUR OBDII ACTIVATOR IS REQUIRED TO UNLOCK THE BACKUP CAMERA FEATURE**

JEEP PATRIOT Systems COMPATIBILITY

JEEP PATRIOT Factory Connect Harness FEATURES

Features

• • Factory JEEP Connect Harness
  • Plug & Play configuration
  • Quick Connect to Video Cable and Rear Camera
  • Automatic Reverse trigger activation
  • Rear Camera Input (RCA)
  • Parking Guide Line Option (ON/OFF)

JEEP PATRIOT Backup Camera FEATURES

Feature

• • OEM Style Backup Camera fitment
  • Flush Mount Camera
  • Vivid Color High Resolution
  • 170° Wide Angle View
  • Parking Guide Lines (can be turned on/off)
  • Waterproof Ip68
  • Shockproof
  • Simple Installation

Specifications

155° Off Axis View Cone

IP69K Waterproof Certified (Can Handle Direct High Pressure Spray and Not Leak)

UV Protected and Waterproof Cabling

0.1 LUX Rating for Optimal Low-light Performance

32° to 160° Temp Performance Rating

Quick Connect/Disconnect

Optional Parking Lines ON/OFF

Optional Mirror Image ON/OFF

Water Deterrent Gasket (Provided for Sealed Mount to Vehicle Surface)

JEEP PATRIOT OEM Integrated Backup Camera System PACKAGE CONTENT

• • JEEP Factory Connect Harness
  • JEEP OEM Style Universal Mount Backup Camera
  • 30FT Video Cable
  • Camera Power/Ground Harness
  • Male to Male RCA Adapter
  • Camera sealer pad
  • Installation Instructions
  • Owners Manual/Warranty Card
