DODGE DAKOTA OEM Integrated Backup Camera System

$359.00$369.00

This OEM Integrated DODGE Rear-View Backup Camera kit fits all 2008-2010 DODGE DAKOTA models with MyGig Radio. The comprehensive Multimedia Video Interface integrates through a simple plug and play connection to unlock and enable Video.



** THIS KIT DOES NOT REQUIRE DEALER ACTIVATION. IT’S A PLUG AND PLAY THAT WILL TRIGGER ONCE INSTALLED **



Clear

Extended Warranty *

Add up to 3 total years of warranty.

Category: SKU: FC-BCI-CH21-Dakota

Description

DODGE DAKOTA OEM Integrated Backup Camera

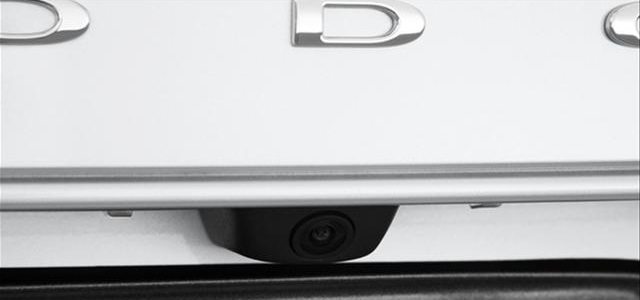

The  Dodge Dakota  OEM Integrated Backup Camera system is a high definition rear view camera and video integration module that fits All Trim Levels for your DODGE vehicle with OEM MyGig Radio. The OEM Integrated backup camera mounts above the license plate area .Once connected to the video interface module, the image appears automatically in high definition when the vehicle is placed into reverse. The Integration Module is a fully programmed plug and play Interface that allows for Video. This system is a simple OEM integration package that maintains your factory set up and only takes a few simple steps to install, while upgrading your vehicle with backup camera and full Multimedia Video integration.

** THIS KIT DOES NOT REQUIRE DEALER ACTIVATION. IT’S A PLUG AND PLAY THAT WILL TRIGGER ONCE INSTALLED **

DODGE DAKOTA Systems COMPATIBILITY

DODGE Model   Model Year Interface System
Dakota 2008-2010 with MyGig Radio





*Works with all MyGig Radios including: RER / REN / RHB / RBZ / RHR

*Note: NON U.S. Radios not supported: REP / RHP / REZ / REW / RBZ / REJ

DODGE DAKOTA INTERFACE FEATURES



Input

    • Plug & Play installation by LCD Connector
    • Connected devices controlled through factory Steering Wheel buttons
    • 1 x Dedicated Rear-View Camera input
    • 2 x Video Inputs
    • USB Updateable



Output

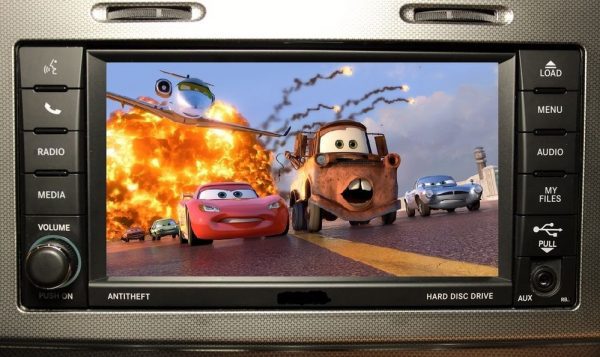

    • Unlocks Screen for Video
    • 1 x Rear View Camera Image



Highlights

    • Single Plug and Play Connection for Installation
    • No wire cutting or other connections needed
    • Simple removal for Leased Vehicles









DODGE DAKOTA OEM Integrated Style Backup Camera FEATURES



Features

    • SONY CCD HD
    • Vivid Color High Resolution
    • 170° Wide Angle View
    • Parking Guide Lines (can be turned on/off)
    • Waterproof Ip68
    • Shockproof
    • Simple Installation



Specifications

Specification Terms Product Values
Image Sensor CCD HD Sony
Power Supply DC12V±1V
Power <1W
Effective Pixels 728*582
Resolution (TV Line) 520
Electronic Shutter 1/60, 1/10,000 sec
Lens Angle 170°
Min. Illumination 0.01lux
IP Rating Ip68
S/N Ratio ≥48dB
Video Output 1.0vp-p.75Ω
Current Consumption 30-60mA
Operating Temp. (F) -20~+100
Storage Temp. (F) -40~+120
TV System NTSC/PAL
White Balance Auto



























DODGE DAKOTA Backup Camera System PACKAGE CONTENT

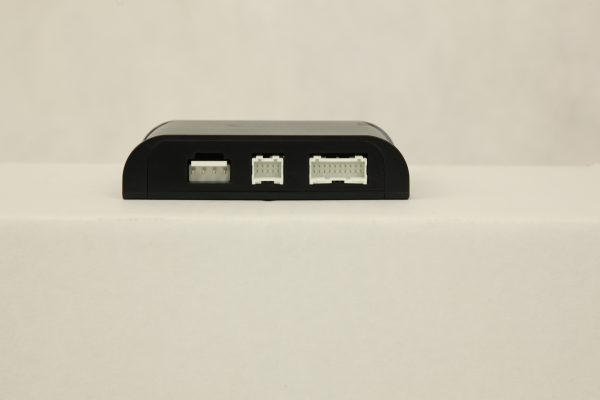

    • Multimedia Interface

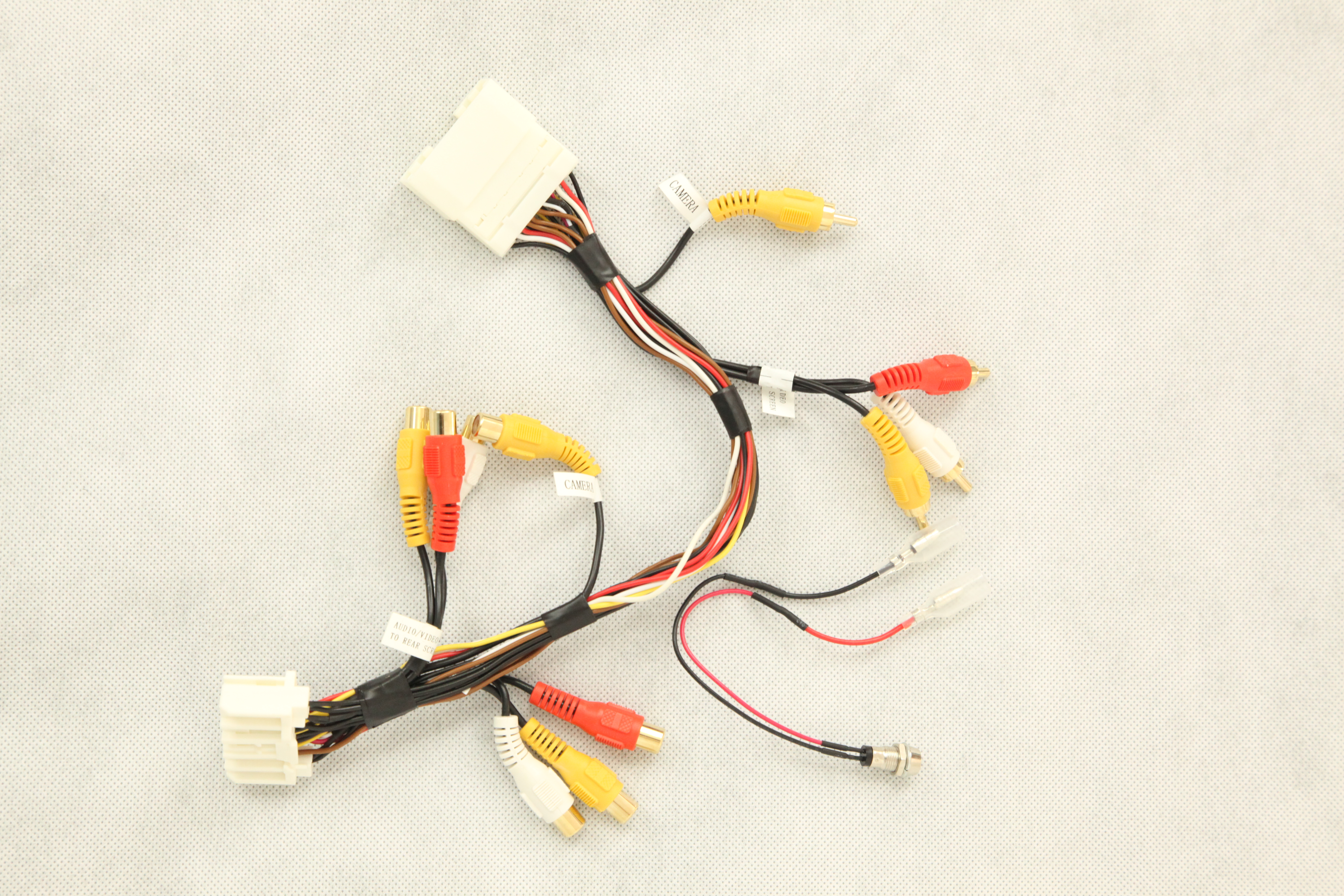

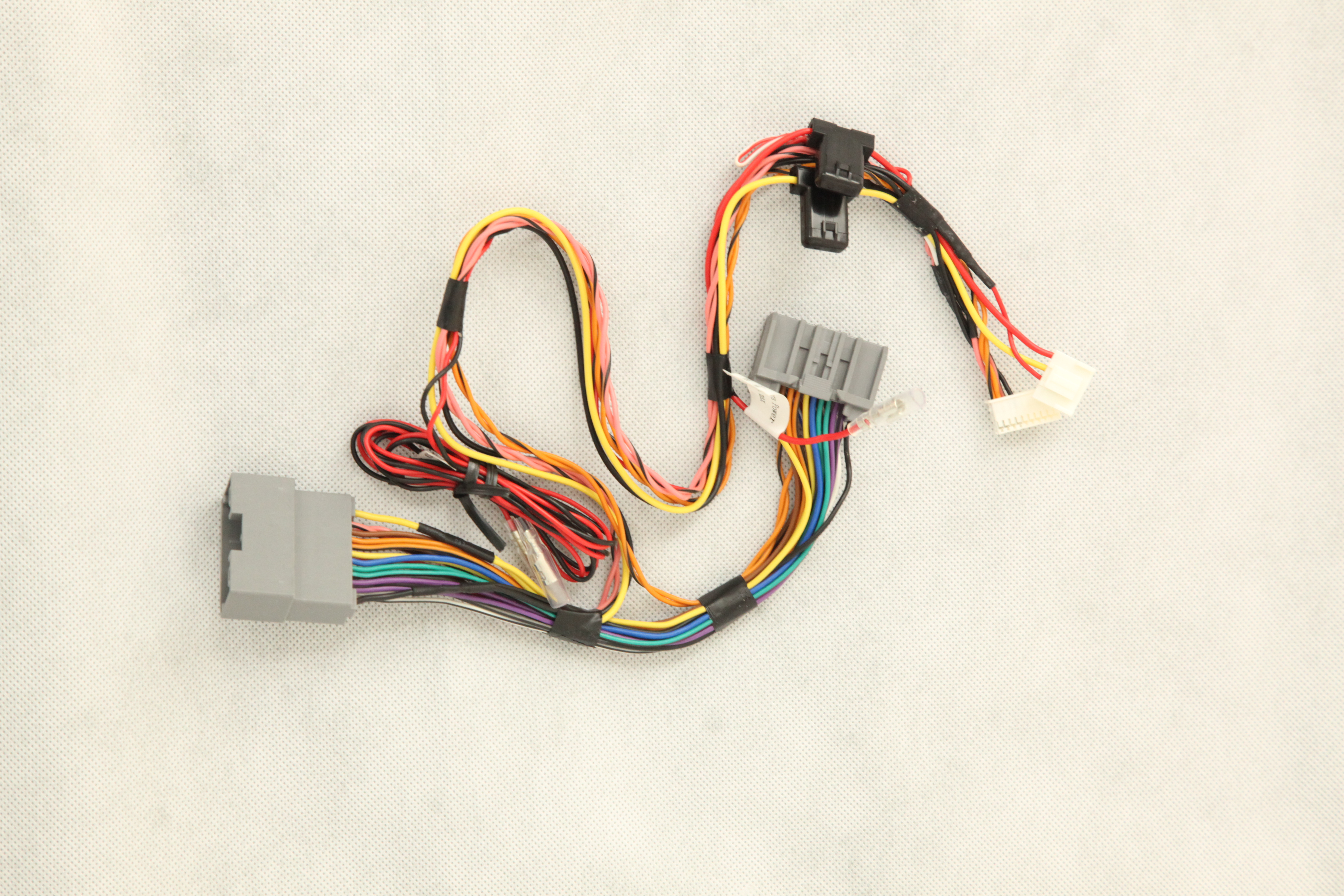

    • Plug & Play Multimedia Harness
    • OEM Style DODGE Rear View Camera (Sony CCD HD)
    • Power/Ground harness cable
    • 35FT Video cable
    • Installation Instructions
    • Owners Manual/Warranty Card



Additional information

Weight 3.0000 lbs
