FORD F-150 OEM Integrated Backup Camera System

$488.00$558.00

This OEM Integrated FORD Rear-View Backup Camera kit fits all 2013-2016 FORD F-150 models with SYNC & MyFord Touch Navigation Systems. The comprehensive Multimedia Video Interface integrates behind the factory screen through a simple plug and play connection to enable Video In Motion and the viewing of external video sources such as Backup Camera (provided in kit), DVD player, TV tuner, Video Game Console, Smartphone, and optional Navigation on your factory built-in car monitor.

Clear

Extended Warranty *

Add up to 3 total years of warranty.

Categories: , SKU: GCH-F150

Description

FORD F-150 OEM Integrated Backup Camera

The Ford F-150 OEM Integrated Backup Camera system is a high definition rear view camera and video integration module for your FORD vehicle with Hard Drive SYNC or MyFord Touch Navigation. The OEM Integrated Backup Camera replaces and mounts within the tailgate handle, once connected to the video interface module, the image appears automatically in high definition when the vehicle is placed into reverse. The Integration Module is a fully programmed plug and play Interface that allows for Video In Motion and has a dedicated rear view camera input along with 2 additional video inputs for external sources such as a DVD Player, Frontal Vision Camera, or iPod/iPhone. This system is a simple OEM integration package that maintains your factory set up and only takes a few simple steps to install, while upgrading your vehicle with backup camera and full Multimedia Video integration.

FORD F-150 Systems COMPATIBILITY

FORD Model   Model Year Interface System
F-150 2013-2016 4.2″ SYNC
F-150 Raptor 2013-2016 4.2″ SYNC
F-150 2013-2016 8″ MyFord Touch
F-150 Raptor  2013-2016 8″ MyFord Touch





FORD F-150 INTERFACE FEATURES



Input

    • Plug & Play installation by LCD Connector
    • Connected devices controlled through factory Steering Wheel buttons
    • 1 x Dedicated Rear-View Camera input
    • 2 x Video Inputs
    • USB Updateable



Output

    • Unlocks Screen for Video In Motion in all gears
    • 1 x Rear View Camera Image
    • 2 x Video Source Displays
    • 2 x 12V Output for external sources



Highlights

    • Single Plug and Play Connection for Installation
    • No wire cutting or other connections needed
    • Unlocks factory screen to display sources in motion
    • View any video source in all gears
    • Simple removal for Leased Vehicles









FORD F-150 OEM Integrated Style Backup Camera FEATURES



Features

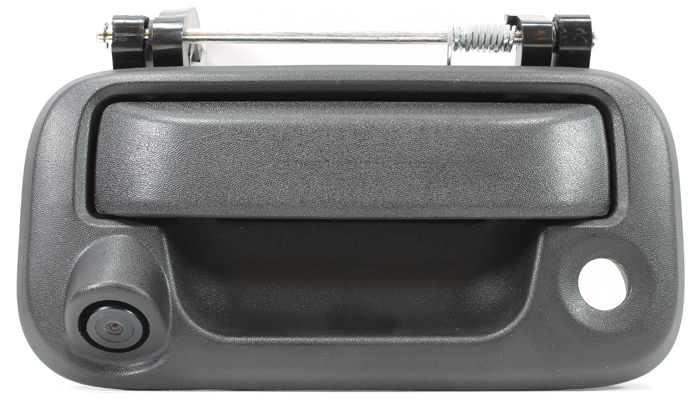

    • Tailgate Handle Camera fitment
    • SONY CCD HD
    • Vivid Color High Resolution
    • 170° Wide Angle View
    • Parking Guide Lines (can be turned on/off)
    • Waterproof Ip68
    • Shockproof
    • Simple Installation



Specifications

Specification Terms Product Values
Image Sensor CCD HD Sony
Power Supply DC12V±1V
Power <1W
Effective Pixels 728*582
Resolution (TV Line) 520
Electronic Shutter 1/60, 1/10,000 sec
Lens Angle 170°
Min. Illumination 0.01lux
IP Rating Ip68
S/N Ratio ≥48dB
Video Output 1.0vp-p.75Ω
Current Consumption 30-60mA
Operating Temp. (F) -20~+100
Storage Temp. (F) -40~+120
TV System NTSC/PAL
White Balance Auto



























FORD F-150 Backup Camera System PACKAGE CONTENT



    • SYNC / MyTouch Integration Module
    • Plug & Play Multimedia Harness
    • Ford Tailgate Handle Rear View Camera (Sony CCD HD)
    • Power/Ground harness cable
    • 30FT Video cable
    • Installation Instructions
    • Owners Manual/Warranty Card



Additional information

Weight 3.0000 lbs
