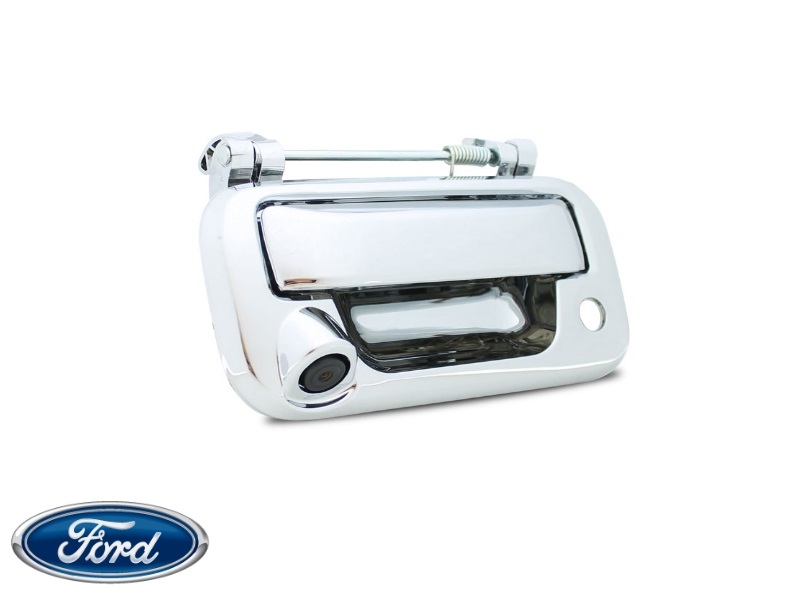

FORD F-150 OEM Integrated Tailgate Handle Rear-View Camera

$244.00

This OEM Integrated FORD Rear-View Tailgate Handle Backup Camera is designed for FORD F-SERIES models. The Camera can be integrated to a factory built-in car monitor or paired with one of the OEM style Rear-View Mirror LCD Systems.

Extended Warranty *

Add up to 3 total years of warranty.

Category: SKU: fftghc-c

Description

FORD F-150 OEM Integrated Tailgate Handle Rear-View Camera

The FFTGHC is designed especially for FORD F-SERIES models as a factory parking and rear-view assist upgrade. The OEM Integrated Camera replaces and mounts within the tailgate handle of the trunk through a simple installation that provides a wide field of vision and a colorful high definition image.



FORD F-150 OEM Integrated Tailgate Handle Rear-View Camera COMPATIBILITY

  FORD Model   Model Year
F-150 2005-2015
F-250 2005-2015
F-350 2005-2015
F-450 2005-2015
F-550 2005-2015
Super Duty 2005-2015







FORD F-150 OEM Integrated Tailgate Handle Rear-View Camera FEATURES



Features

Tailgate Handle Camera fitment
SONY CCD HD
Vivid Color High Resolution
170° Wide Angle View
Parking Guide Lines (can be turned on/off)
Waterproof Ip68
Shockproof
Simple Installation
No drilling or cutting wires required



Specifications

Specification Terms Product Values
Image Sensor CCD HD Sony
Power Supply DC12V±1V
Power <1W
Effective Pixels 728*582
Resolution (TV Line) 520
Electronic Shutter 1/60, 1/10,000 sec
Lens Angle 170°
Min. Illumination 0.01lux
IP Rating Ip68
S/N Ratio ≥48dB
Video Output 1.0vp-p.75Ω
Current Consumption 30-60mA
Operating Temp. (F) -20~+100
Storage Temp. (F) -40~+120
TV System NTSC/PAL
White Balance Auto





















FORD F-150 OEM Integrated Tailgate Handle Rear-View Camera PACKAGE CONTENT





    • FORD Tailgate Handle Camera – Chrome (Sony CCD HD)
    • Power/Ground harness cable
    • 40FT Video cable
    • Installation Instructions
    • Owners Manual/Warranty Card









Note! Camera is not meant for constant connection to car’s electrical system. Power supply should be organized in such a way that the camera switches on only when it is necessary (e.g. when reversing).



Additional information

Weight 3.0000 lbs
