RANGE ROVER SPORT OEM Integrated Backup Camera
The RRINT-UNIDF systems package is a high definition rear view camera and video integration module for your RANGE ROVER. The OEM Integrated backup camera mounts above the license plate area. Once connected to the video interface module, the image appears automatically in high definition when the vehicle is placed into reverse. The RRINT Interface Module has a dedicated rear view camera input, aftermarket RGB Navigation input, and 3 additional video inputs for external sources such as a DVD Player, Frontal Vision Camera, or iPod/iPhone. This system is a simple OEM integration package that maintains your factory set up while upgrading your vehicle with backup camera and full Multimedia Audio/Video integration.
RANGE ROVER SPORT Systems COMPATIBILITY
RANGE ROVER Model | Model Year | Multimedia System |
Sport | 2005-2009 | w/ Nav (GVIF) |

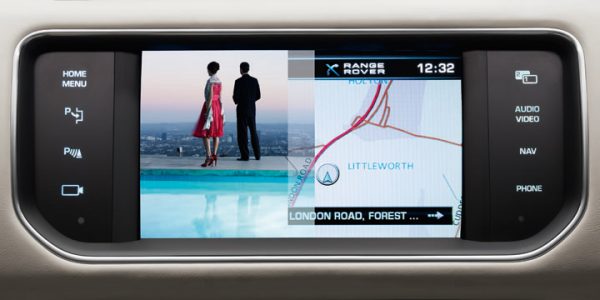

Sport | 2010-2014 | Dual View LCD |
System Requirment Note*
-
- 2005-2009 SPORT must have external navigation box
- 2010-2014 SPORT must have built in dual view LCD display
RANGE ROVER SPORT Interface Module FEATURES
Input
-
- Installation by Plug & Play LVDS Cable
- DVD & NAVI control by through optional touch screen panel
- 1 x dedicated Rear-View Camera input
- 3 x A/V Inputs
- 1 x LCD input
Output
-
- 2 x CVBS output (video out for headrest monitor installation)
- 4 x Audio select output
- 1 x Cayenne output
- Remote control & Toggle switch provided
Power
-
- Input power : 8V DC – 24V DC
- Consumption : 5W, Max
Board dimension
-
- 130mm x 105mm x 22mm
RANGE ROVER SPORT Backup Camera FEATURES
Features
-
- OEM Style Backup Camera fitment
- Flush Mount Camera
- Vivid Color High Resolution
- 170° Wide Angle View
- Parking Guide Lines (can be turned on/off)
- Waterproof Ip68
- Shockproof
- Simple Installation
Specifications
155° Off Axis View Cone
IP69K Waterproof Certified (Can Handle Direct High Pressure Spray and Not Leak)
UV Protected and Waterproof Cabling
0.1 LUX Rating for Optimal Low-light Performance
32° to 160° Temp Performance Rating
Quick Connect/Disconnect
Optional Parking Lines ON/OFF
Optional Mirror Image ON/OFF
Water Deterrent Gasket (Provided for Sealed Mount to Vehicle Surface)
RANGE ROVER SPORT OEM Integrated Backup Camera System PACKAGE CONTENT
-
- RANGE ROVER Car Video Interface Main Board
- Remote control unit with IR cable or OSD Keypad
- Cable set
- Power Cable with protective filter
- LCD Out cable
- AV bundle cable
- NAVI (RGB) cable
- Mode switch cable
- LCD cable
- RANGE ROVER Universal Mount Backup Camera
- Power/Ground harness cable
- 30FT Video cable
- Installation Instructions
- Owners Manual/Warranty Card
