Description
GMC ACADIA OEM Integrated Backup Camera

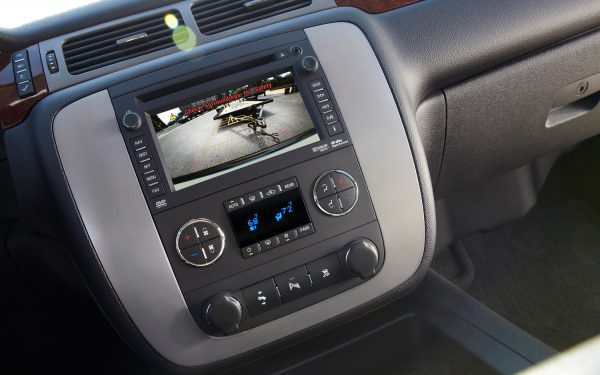

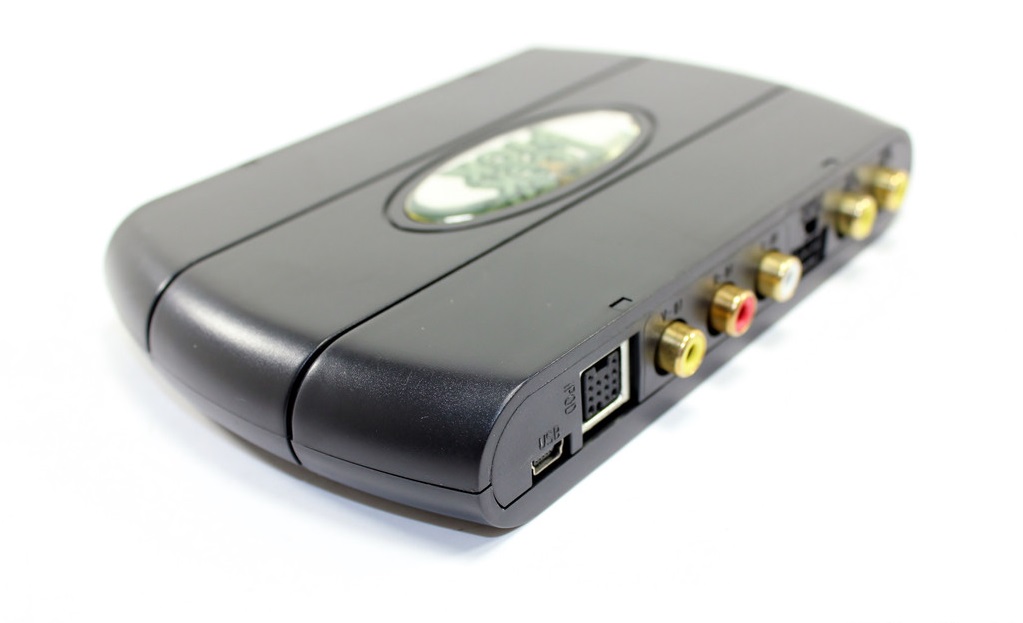

The LOCKPICK-UNIDF systems package is a high definition rear view camera and video integration module for your GMC vehicle with GM Navigation. The OEM Integrated backup camera mounts above the license plate area. Once connected to the video interface module, the image appears automatically in high definition when the vehicle is placed into reverse. The Lockpick Module is a fully programmed plug and play Interface that allows for Video In Motion and has a dedicated rear view camera input along with 2 additional video inputs for external sources such as a DVD Player, Frontal Vision Camera, or iPod/iPhone. This system is a simple OEM integration package that maintains your factory set up and only takes a few simple steps to install, while upgrading your vehicle with backup camera and full Multimedia Video integration.
GMC ACADIA Systems COMPATIBILITY
| GMC Model |  Model Year | Interface System |
| Acadia | 2008-2014 | GM Navigation (Gen6) |
| Acadia Denali | 2008-2014 | GM Navigation (Gen6) |
GMC ACADIA Lockpick FEATURES
Input
-
- Plug & Play installation by LCD Connector
- Connected devices controlled through factory Steering Wheel buttons
- 1 x Dedicated Rear-View Camera input
- 2 x Video Inputs
- USB Updateable
Output
-
- Unlocks Screen for Video In Motion in all gears
- 1 x Rear View Camera Image
- 2 x Video Source Displays
- 2 x 12V Output for external sources
Highlights
-
- Single Plug and Play Connection for Installation
- No wire cutting or other connections needed
- Unlocks factory screen to display sources in motion
- View any video source in all gears
- Simple removal for Leased Vehicles
GMC ACADIA OEM Integrated Style Backup Camera FEATURES
Â
Features
-
- Flush Mount Camera
- Vivid Color High Resolution
- 170° Wide Angle View
- Parking Guide Lines (can be turned on/off)
- Waterproof Ip68
- Shockproof
- Simple Installation
Specifications
155° Off Axis View Cone
IP69K Waterproof Certified (Can Handle Direct High Pressure Spray and Not Leak)
UV Protected and Waterproof Cabling
0.1 LUX Rating for Optimal Low-light Performance
32° to 160° Temp Performance Rating
Quick Connect/Disconnect
Optional Parking Lines ON/OFF
Optional Mirror Image ON/OFF
Water Deterrent Gasket (Provided for Sealed Mount to Vehicle Surface)
GMC ACADIA Backup Camera System PACKAGE CONTENT
-

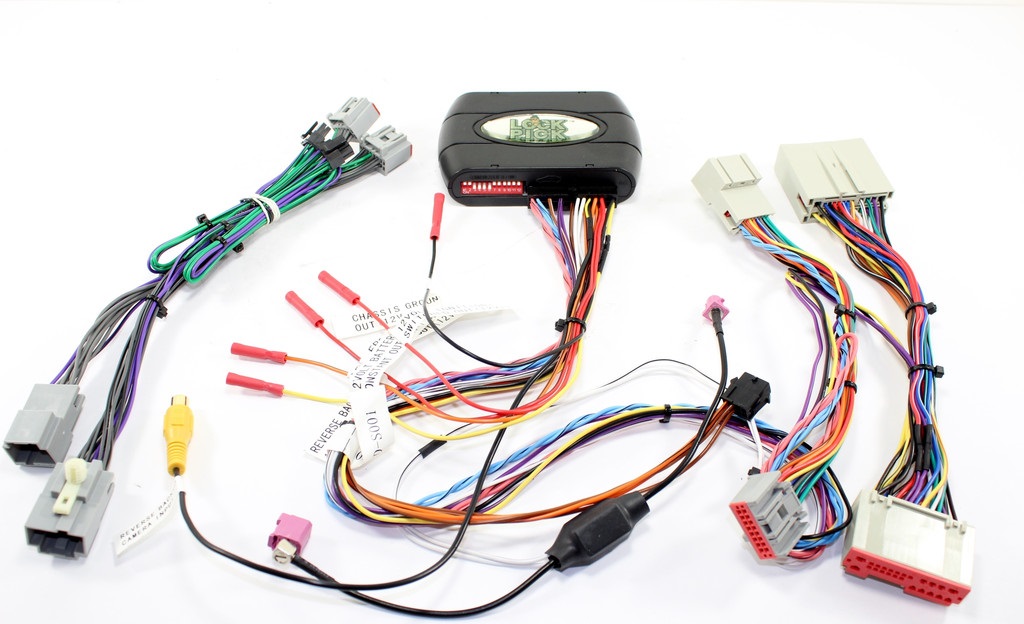

- GM Lockpick Module
- Plug & Play Multimedia Harness
- OEM Style GMC Rear View Camera
- Power/Ground harness cable
- 35FT Video cable
- Installation Instructions
- Owners Manual/Warranty Card
GMC Acadia Backup Camera FAQ
Will this add a reverse camera to my GMC Acadia?
Many 2008-2014 GMC Acadia models with GM Navigation shipped without a factory reverse camera. This kit adds a true OEM-integrated GMC Acadia backup camera that shows on your existing factory screen, with no aftermarket monitor and no dash cutting.
What Acadia models is this compatible with?
It fits 2008-2014 GMC Acadia models with GM Navigation. Check the compatibility chart above to confirm your exact year and screen, and our team can verify the right fit for your car.
Is installation plug and play?
Yes. The included factory-connect harness plugs in behind your screen and the OEM-style camera mounts in the factory location, triggering automatically when you shift into reverse.
